Zoeller

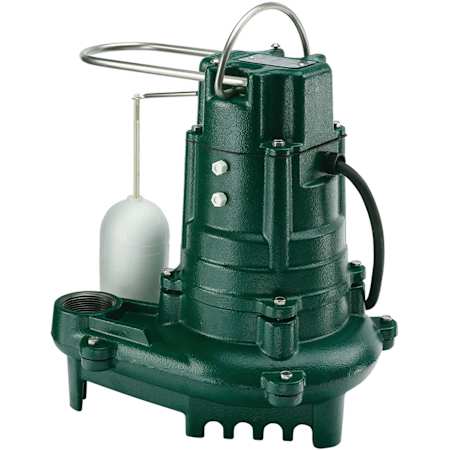

Zoeller Flow-Mate M137 - 1/2 HP 90GPM Cast Iron Effluent Pump with Vertical Float Switch N/A
Zoeller Flow-Mate M137 - 1/2 HP 90GPM Cast Iron Effluent Pump with Vertical Float Switch N/A
Alternate Image
Alternate Image

Zoeller Flow-Mate M137 - 1/2 HP 90GPM Cast Iron Effluent Pump with Vertical Float Switch

Model: 137-0001
|
Item: bci5171530

$520.50
20 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, July 13th
-
Return & Shipping Details

Details

Zoeller Model M137 Sump Pump is an all cast iron pump designed to remove unwanted groundwater in basement sump applications. The professional-grade, 1/2 HP M137 is great option when a high flow cast iron sump pump is required. Known as the "Flow-Mate," the M137 is a fully automatic float-operated sump pump. The white polypropylene float is solid so it cannot become waterlogged. This ensures that it is always buoyant and able to turn the pump on when necessary. The Model 137's switch case, motor housing, pump housing, and base are each constructed of cast iron. Additionally, the Model 137 is designed with a cast iron vortex impeller allowing solids to pass freely through the pump. The pump's identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 137 is able to withstand the most demanding high flow basement sump applications. Every pump is submerged in water and tested to its published performance curve, ensuring it meets Zoeller's expectations and delivers peace of mind right-out-of-the-box.

Features:

  • Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
  • Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
  • Cast Iron vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
  • Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
  • Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
  • Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
  • Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product

Specifications:

  • Horsepower: 0.5
  • Impeller Material: Cast Iron
  • Discharge Diameter: 1-1/2"
  • Maximum Head Height: 26 ft
  • Amperage: 9.4
Additional Zoeller Links

Dimensions and Measurements

Cord Length
10 ft.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
90
Maximum Head Height
26 ft.

Dimensions and Measurements

Cord Length
10 ft.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
90
Maximum Head Height
26 ft.

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Material Shaft
Steel
Pump Material
Cast Iron
Submersible
Yes
Switch Type
Automatic

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Material Shaft
Steel
Pump Material
Cast Iron
Submersible
Yes
Switch Type
Automatic

Electrical and Operational Information

Amperage
9.4
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.5
Maximum Fluid Temperature
130 °F
Motor RPM
1725
Voltage
120

Electrical and Operational Information

Amperage
9.4
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.5
Maximum Fluid Temperature
130 °F
Motor RPM
1725
Voltage
120

Warranty and Product Information

Commercial Warranty
3 Year
Country Of Origin
USA
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Country Of Origin
USA
Manufacturer Warranty
3 Year
