Zoeller
Zoeller 1/2 HP Sump Pump with Basin N/A

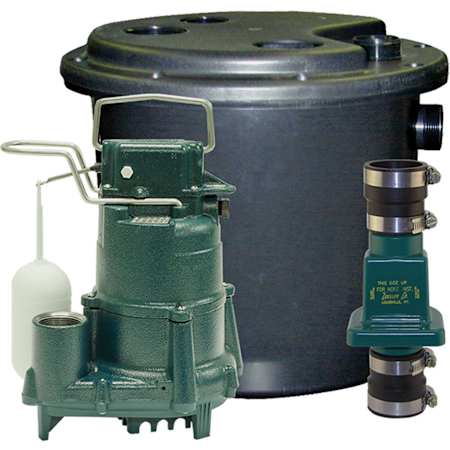

Zoeller 1/2 HP Sump Pump with Basin

Model: 131-0001
|
Item: bci2221291

$481.50
2 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, April 17th
-
Return & Shipping Details

Details

Zoeller Model 131 Drain Pump is an ideal choice for high flow drain pump applications when a gravity drain is not accessible. The drain pump eliminates the need to break concrete to install a sink drain. It is often used when adding a kitchen or wet bar in an unfinished basement. It allows you to pump the unwanted water to any discharge point desired. The Model 131 is often used in applications requiring higher flow. Zoeller drain pump is also used to handle the wastewater from coffee bars, utility sinks, wet bar sinks, ice machine discharge, dishwashers, air conditioning condensate, and much more. Zoeller Model 131 Drain Pump is constructed with a polypropylene, corrosion-resistant basin and comes with 1/2 HP submersible sump pump capable of passing solids up to 1/2-inch. For added convenience, the check valve is included. The discharge, vent, and inlet openings are already built into the basin so installation is quick and straight forward. The pump can pass laundry lint, making this drain pump model ideal for laundry tray pumps. All pumps utilize a non-clogging vortex impeller, a reliable system that reduces the chances of clogging and backups. Peace of mind right-out-of-the-box! Less hassle. Less mess.

Features:

  • System includes automatic 1/2 HP automatic pump, tank assembly and check valve
  • Non-clogging vortex impeller capable of passing 1/2" spherical solids reducing the potential for clogs
  • 11-3/4" x 12-1/2" basin with a small footprint so it is easily installed in a base cabinet under the sink, beneath a utility sink, or in any compact area
  • Cover includes: 1-1/2" discharge, 1-1/2" inlet, 2" NPT vent and cord seal opening
  • Low profile design for easy installation in base cabinet or under a sink
  • 3-year limited warranty on pump provides you with peace of mind right out of the box

Specifications:

  • Horsepower: 0.5
  • Discharge Diameter: 1-1/2"
  • Includes: Pump, tank, check valve
  • Impeller Material: Engineered Plastic
Additional Zoeller Links

Dimensions and Measurements

Cord Length
15 ft.
Diameter
14.5 in.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
45
Height
12.5 in.
Maximum Head Height
23 ft.
Product Weight
47 lbs.
Water Connection
1-1/2"

Dimensions and Measurements

Cord Length
15 ft.
Diameter
14.5 in.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
45
Height
12.5 in.
Maximum Head Height
23 ft.
Product Weight
47 lbs.
Water Connection
1-1/2"

Characteristics and Features

Impeller Material
Engineered Plastic
Material Shaft
Steel
Water Connection Type
NPT

Characteristics and Features

Impeller Material
Engineered Plastic
Material Shaft
Steel
Water Connection Type
NPT

Electrical and Operational Information

Amperage
9.4
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.5
Maximum Fluid Temperature
130 °F
Motor RPM
1725

Electrical and Operational Information

Amperage
9.4
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.5
Maximum Fluid Temperature
130 °F
Motor RPM
1725

Warranty and Product Information

Certifications
UL
Collection
Drain Pump
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3 Years

Warranty and Product Information

Certifications
UL
Collection
Drain Pump
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3 Years
