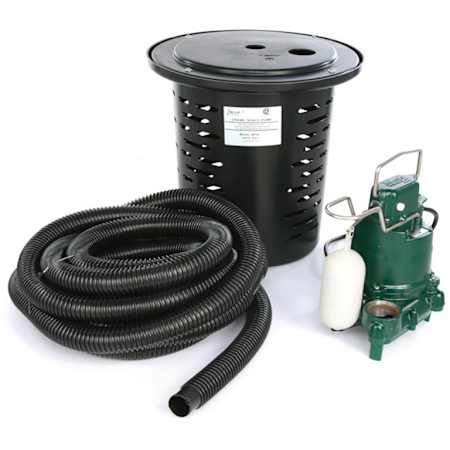

Zoeller 3/10 HP 43 GPM Cast Iron Crawl Space Sump Pump System with M53 Pump and 25' Hose Kit
Model: 108-0001|Item: bci5171506
from theCrawl Space Collection
Details
The Model 108 Crawl Space System is designed specifically for tight or restricted spaces with pooling water and poor drainage. The 3/10 HP pump helps prevent the accumulation of moisture, fungus and odors commonly found in residential crawl spaces. The perforated basin and solid lid keep large debris from entering the pit, eliminating maintenance.
Features:
- System includes automatic 3/10 HP pump, 25' (7.6 m) hose, and tank assembly
- Non-clogging vortex impeller
- Slotted 12-1/4" x 14-7/8" basin
- 3 year limited warranty on pump
Specifications:
- Impeller Material: Engineered Plastic
- Discharge Diameter: 1-1/2"
- Maximum Head Height: 19.25 ft
- Horsepower: 3/10 hp
- Flow Rate: 43 gallons per minute
Dimensions and Measurements
Cord Length | 25 ft. |
Diameter | 12.25 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 43 |
Height | 12.5 in. |
Maximum Head Height | 19.25 ft. |
Product Weight | 30 lbs. |
Width | 14.5 in. |
Dimensions and Measurements
Cord Length | 25 ft. |
Diameter | 12.25 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 43 |
Height | 12.5 in. |
Maximum Head Height | 19.25 ft. |
Product Weight | 30 lbs. |
Width | 14.5 in. |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Pump Material | Cast Iron |
Switch Type | Automatic |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Pump Material | Cast Iron |
Switch Type | Automatic |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9.7 |
Backup GPH @ 0 feet | 2680 GPH |
Backup GPH @ 10 feet | 2040 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 5 feet | 2680 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.3 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 9.7 |
Backup GPH @ 0 feet | 2680 GPH |
Backup GPH @ 10 feet | 2040 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 5 feet | 2680 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.3 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Voltage | 120 |
Warranty and Product Information
Country Of Origin | USA |
Manufacturer Warranty | 3 |
Warranty and Product Information
Country Of Origin | USA |
Manufacturer Warranty | 3 |
