Zoeller 1/3 HP (M53) Remote Sink/Drain Pump System with Vertical Float Switch
Model: 105-0001|Item: bci2260771
Horsepower
Details
The Model 105 Drain Pump is an ideal choice for standard drain pump applications when a gravity drain is not accessible. The drain pump eliminates the need to break concrete to install a sink drain. It is often used when adding a kitchen or wet bar in an unfinished basement. It allows you to pump the unwanted water to any discharge point desired. Zoeller drain pump is also used to handle the wastewater from coffee bars, utility sinks, wet bar sinks, ice machine discharge, dishwashers, air conditioning condensate, and much more. Zoeller popular Model 105 Drain Pump is constructed with a polypropylene, corrosion-resistant basin and comes with 3/10 HP submersible sump pump capable of passing solids up to 1/2-inch. For added convenience, the check valve is included. The discharge, vent, and inlet openings are already built into the basin so installation is quick and straight forward. The pump can pass laundry lint, making this drain pump model ideal for laundry tray pumps. All pumps utilize a non-clogging vortex impeller, a reliable system that reduces the chances of clogging and backups. Peace of mind right-out-of-the-box! Less hassle. Less mess.
Features:

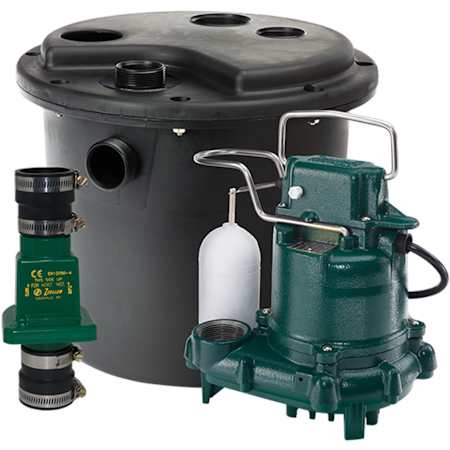

- System includes automatic 3/10 HP automatic pump, tank assembly, and check valve
- Non-clogging vortex impeller capable of passing 1/2" spherical solids reducing the potential for clogs
- 11-3/4" x 12-1/2" basin with a small footprint so it is easily installed in a base cabinet under the sink, beneath a utility sink, or in any compact area
- Cover includes: 1-1/2" discharge, 1-1/2" inlet, 2" NPT vent and cord seal opening
- 3-year limited warranty on pump provides you with peace of mind right out of the box
Dimensions and Measurements
Cord Length | 108 in. |
Diameter | 14.5 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 45 |
Height | 15.5 in. |
Inlet Diameter | 1.5 in. |
Length | 14.5 in. |
Max Float On | 7 in. |
Maximum Head Height | 19.25 ft. |
Min Float Off | 1 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 30 lbs. |
Water Connection | 1-1/2" |
Width | 14.5 in. |
Dimensions and Measurements
Cord Length | 108 in. |
Diameter | 14.5 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 45 |
Height | 15.5 in. |
Inlet Diameter | 1.5 in. |
Length | 14.5 in. |
Max Float On | 7 in. |
Maximum Head Height | 19.25 ft. |
Min Float Off | 1 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 30 lbs. |
Water Connection | 1-1/2" |
Width | 14.5 in. |
Characteristics and Features
Base Material | Iron |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Iron |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Water Connection Type | NPT |
Electrical and Operational Information
Electrical Phases | 1 |
Horsepower | 0.33 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Starting Amps | 25.9 Amps |
Voltage | 120 |
Electrical and Operational Information
Electrical Phases | 1 |
Horsepower | 0.33 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Starting Amps | 25.9 Amps |
Voltage | 120 |
Warranty and Product Information
Certifications | UL |
Collection | Drain Pump |
Country Of Origin | USA |
Made in America | Yes, No |
Manufacturer Warranty | 3 Year Limited, 3 Years |
Warranty and Product Information
Certifications | UL |
Collection | Drain Pump |
Country Of Origin | USA |
Made in America | Yes, No |
Manufacturer Warranty | 3 Year Limited, 3 Years |
