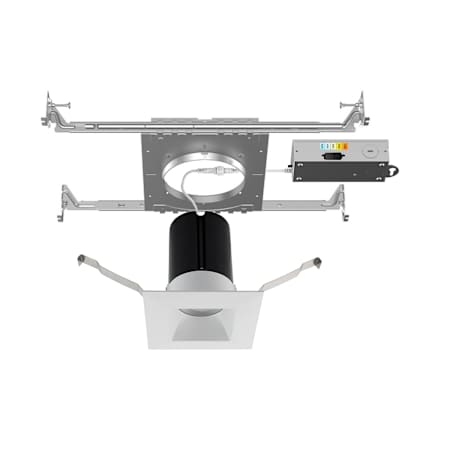

WAC Lighting Ion 3-1/2" Integrated LED Open Recessed Trim and New Construction Housing- IC Rated and Airtight

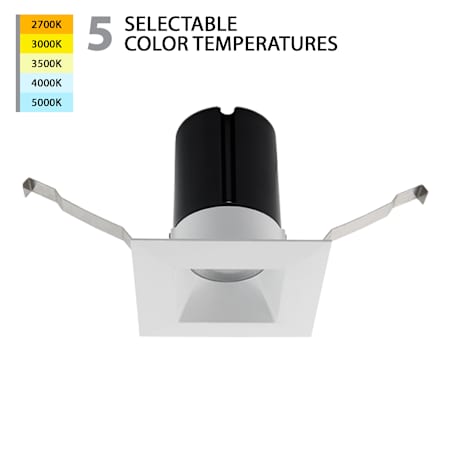

Ion is a powerful high efficiency low profile 2in recessed downlight with an easy connect electrical box for simple installation. The universal input driver (120v-240v-277v) is fully concealed inside the electrical box and dimmable to 5% using a TRIAC or ELV dimmer. Ion is available in round or square as new construction or remodel with all options IC-Rated and Airtight. F9CS version in model number features a 5-CCT color temperature selectable switch with options ranging from 2700K-3000K-3500K-4000K-5000K. A frame-in kit is included with the new construction version, but can also be purchased separately (R2DRDN-FRAME). Wet location listing for indoor and outdoor applications or in showers.

Features:

• INSTALLATION: Male-to-female quick connect locking cable joins the light engine to the driver box. Driver box includes 5 knockouts allowing for an easy electrical connection.
• CUTOUT: Installs into a 3in round ceiling cutout, for ceiling thicknesses between 0.5in and 1.5in. Retention clips hold the light engine into place. Universal input driver 120V-220V-277V.
• Housing is designed for use in new construction
• Insulated ceiling rated and airtight
• Constructed from steel
• Integrated 9 watt LED lighting
• Capable of being dimmed
• CSA and ETL for wet locations
• Energy Star certified
• Title 24 compliant
• Covered by WAC Lighting's 2 year finish and 5 year manufacturer warranties

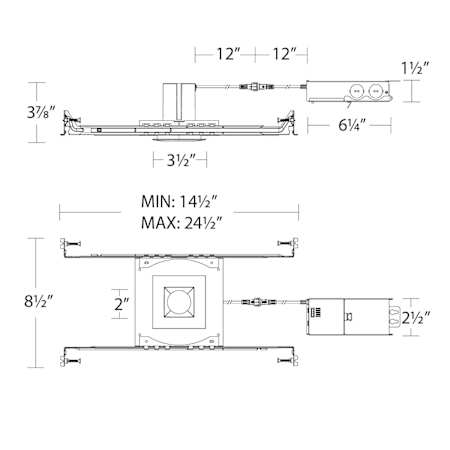

Dimensions:

• Height: 4-1/4"
• Width: 10-7/16"
• Depth: 12-3/8"
• Trim Size: 3-1/2"
• Product Weight: 3.07 lbs
• Aperture: 2"
• Cutout Size: 3"

Electrical Specifications:

• Wattage: 9 watts
• Number of Light Source(s): 1
• Watts Per Bulb: 9 watts
• Lumens: 870
• Color Temperature: 2700K, 3000K, 3500K, 4500K, 5000K
• Color Rendering Index: 90 CRI
• Average Hours: 50000
