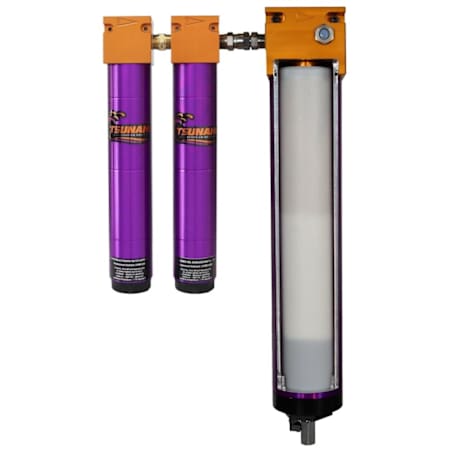

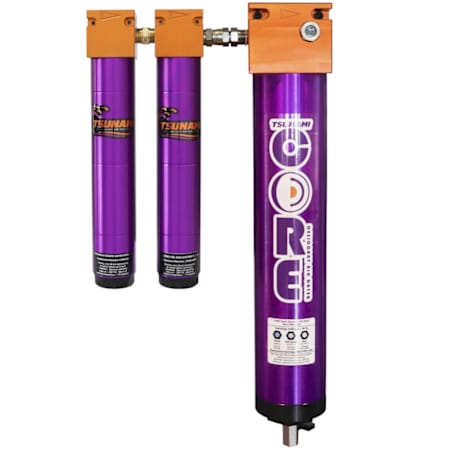

Tsunami Compressed Air CORE Series 1/2" Desiccant Air Dryer System with Pre-Filtration (25 CFM)

Product Information:

• Tsunami CORE Series Desiccant Air Dryer w/ Pre-Filtration
  • Rated for 25 CFM at the spray gun
  • Designed solely for intermittent, lower pressure point-of-use applications
  • Removes humidity, dew points down to -80°F


• Compact Design: Comes complete with pre-filters, desiccant dryer, auto drains & mount bracket


• Stage 1: Water Separator: Water and particulates are removed down to 10 micron


• Stage 2: Oil Coalescing Filter: Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron


• CORE Series Desiccant Cartridge
  • Proprietary, dual-layered, desiccant media blend
  • Eliminates dusting & tunneling
  • Replaceable, spring-loaded cartridge design


• Corrosion-Resistant Interior
  • 20-25% longer media life than competing brands
  • Low pressure drop


• 1/2" Inlet & Outlet NPT Connectors
  • Max inlet pressure is 200 PSI
  • Handles up to 175°F inlet air temperature


• Auto Float Drains: Automatically eliminates water & oil in the filter sumps


• 90-Day Manufacturer Warranty

Specifications:

• Warranty: 90 Day Commercial and 90 Day Residential
• Product Weight: 25 lbs
• Height: 22"
• Length: 13"

Air Dryer Specifications:

• Air Inlet Size: 1/2"
• Air Outlet Size: 1/2"
• Automatic Drain Valve Included

Pump Specifications:

• After Cooler Included
