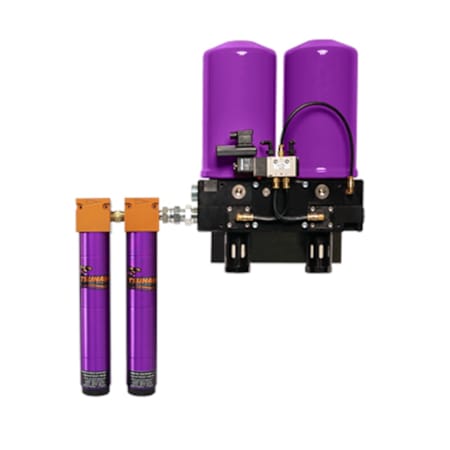

Tsunami Compressed Air Pure-10 Series Regenerative Air Dryer 10-HP (40 CFM) with Moisture Minder Pneumatic Drain

Product Information:

• Tsunami 40 CFM Regenerative Dryer System
  • Delivers very dry, clean air down to -80°F dew point
  • Pre-filtration to assure removal of water, oil, and particulates before entering the dryer


• Compact, Expandable Design
  • Comes complete with pre-filter, auto drains, & mount bracket
  • Installs in minutes between receiver tank and piping
  • Great for mobile operations; auto paint, powder coating, etc.

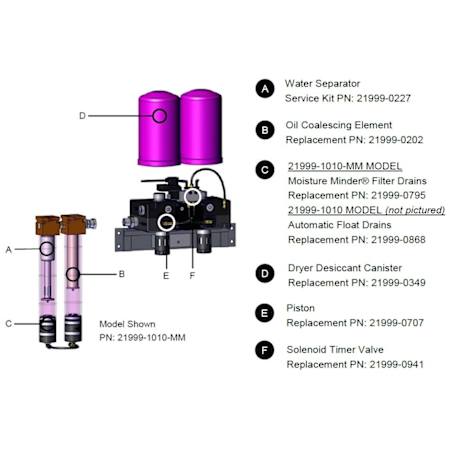

• Stage 1: Water Separator: Water and particulates are removed down to 10 micron


• Stage 2: Oil Coalescing Filter: Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron


• 1/2" Inlet & 1" Outlet NPT Connectors
  • Max inlet pressure is 175 PSI; Min 80 PSI
  • Requires connection to 120-volt outlet
  • Handles up to 150°F inlet air temperature


• Moisture Minder Pneumatic Drains: Automatically eliminates water & oil in the filter sumps

Specifications:

• Warranty: 1 Year Commercial and 1 Year Residential
• Product Weight: 62 lbs
• Fuel Type: Electric
• Height: 12"
• Length: 27"

Air Dryer Specifications:

• Air Inlet Size: 1/2"
• Air Outlet Size: 1"
• Automatic Drain Valve Included
• Horsepower: 10 HP

Pump Specifications:

• After Cooler Included
