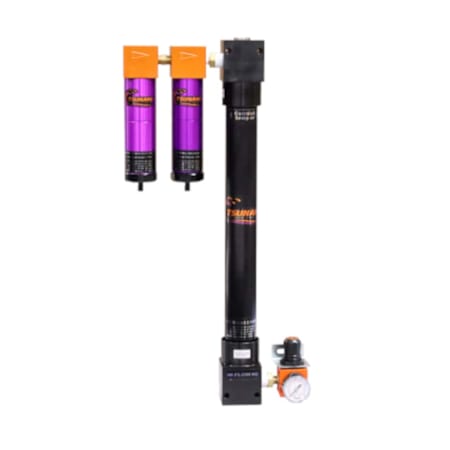

Tsunami Compressed Air 1/4" Painting 2-Stage Membrane Dryer (15 CFM)

Product Information:

• Tsunami Filter Technology: Provides clean, dry, Grade D instrument, HEPA quality air


• 100% Duty Cycle Requires No Electricity
  • 175 PSI maximum inlet pressure & outlet pressure
  • Delivers 15 CFM maximum flow
  • 100°F maximum inlet temperature


• Micro-Flex Element: 3 times larger than competitor's elements


• Stage 1: Water Separator: Removes water & particulates down to 10 micron


• Stage 2: Oil Coalescing Filter
  • Removes oil aerosols down to .001 PPM
  • Traps particulates down to 0.1 micron


• Final Stage: Membrane Dryer
  • 3.3 CFM sweep air @ 100 PSI sends pretreated air through dryer
  • Clean, dry air exits through an outlet regulator


• Easy, Low Cost Maintenance
  • Designed for point of use spray applications; prevents spots
  • Allows smooth, professional paint finishes
  • 1/4" ball valve, precision regulator & gauge included


• Bottom Cap Has Elevated Sump
  • Allows sediment to accumulate & extends filter life
  • Can be easily removed to service float drain
  • Threaded for optional electronic drain (sold separately)


• Integral Automatic Float Drain
  • Ejects water from large drain sump
  • Easy-to-service with minimal maintenance required



Specifications:

• Warranty: 90 Day Commercial and 90 Day Residential
• Product Weight: 9 lbs
• Fuel Type: Electric
• Height: 22"
• Length: 12"

Air Dryer Specifications:

• Air Inlet Size: 1/4"
• Air Outlet Size: 1/4"
• Automatic Drain Valve Included

Pump Specifications:

• After Cooler Included
