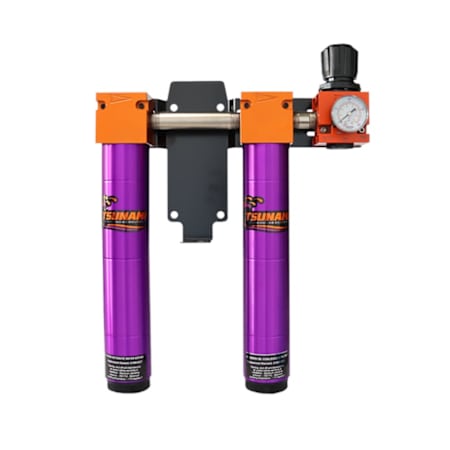

Tsunami Compressed Air Filtration Package #4 - 1/2" Water Separator, Oil Coalescing and Regulator Filtration Combo (50 CFM)

Product Information:

• Tsunami 50 Series Filtration Package #4
  • Includes water separator, oil coalescing and regulator
  • Packaged for air tools, auto shops, robotics, & machine tools


• Oversize Filter Casing w/ Mounting Brackets
  • Filter heads machined from 6061 Aircraft Aluminum
  • Anodized inside and out for ultimate durability against corrosion


• Rated Up To 50 CFM
  • Exceeding 50 SCFM may result in moisture carryover
  • 250 PSI maximum pressure; 122°F maximum temperature
  • 1/2" input & output connections fit many systems


• Water Separator
  • Filters particulate down to 10 microns
  • Removes water up to one quarter per minute


• Oil Coalescing Filter
  • Non-wicking layer collects & drains oils preventing entrapment
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron


• Precision Regulator: Easily choose & monitor the exact amount of air you need


• Integral Automatic Float Drain
  • Ejects water and oil from large drain sump
  • Threaded for optional electronic drain (sold separately)



Specifications:

• Warranty: 1 Year Commercial and 1 Year Residential
• Product Weight: 12 lbs
• Height: 17"

Air Tool Specifications:

• CFM: 50

Air Dryer Specifications:

• Air Inlet Size: 1/2"
• Air Outlet Size: 1/2"
