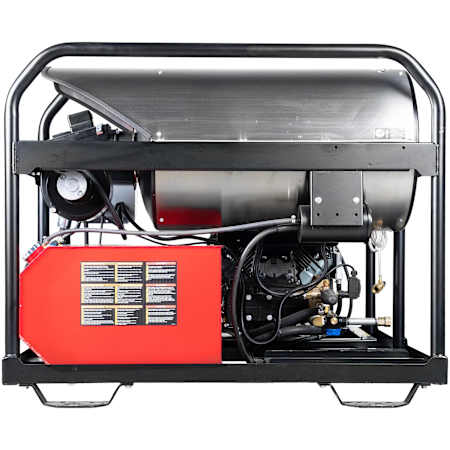

Simpson 3500 PSI 5.5 GPM Gas Powered Hot Water Pressure Washer with 678 CC CRX Engine

The Simpson SB3555131EDC1 is a professional belt-driven hot water pressure washer designed for demanding industrial cleaning applications. It delivers 3,500 PSI at 5.5 GPM, powered by a CRX 680 V-Twin engine with key start ignition and a 7.5-gallon fuel tank, coupled with a Comet RW5535S industrial triplex pump for consistent, high-pressure performance. The 18" horizontal heating coil paired with a 12VDC Wayne diesel burner produces a heat rise of 110–120 degrees fahrenheit, efficiently removing grease, oil, and heavy soils. Built on a large roll-over powder-coated steel frame with 1.5" tubing and equipped with vibration isolators, this unit ensures stability and durability. Professional-grade accessories include a 3/8” x 50’ high-pressure hose, 12 GPM hot water spray gun, 48” insulated lance, six quick-connect nozzles (15 degrees, 25 degrees, 40 degrees, soap), and downstream detergent injection, making it ideal for contractors and industrial cleaning professionals.

Product Information:

• Simpson Super Brute Hot Water Pressure Washer
  • Powers through industrial cleaning applications
  • Ideal solution for deep cleaning commercial kitchens, commercial sites, or government/municipality buildings
• CRX 680 Commercial-Grade V-Twin Engine w/ Electric Start
  • Full pressure lubrication, low oil shutdown & low sound level
  • Electric key start with marine battery box (12V U1 Sized Battery Not Included)
• Comet Industrial Belt-Drive Triplex Pump
  • Adjustable pressure, external unloader, bypass hose & safety relief valve
  • Brass manifold & ceramic pistons run cooler and last longer; can be rebuilt
• Clean Burning, Steel Wrapped Horizontal Heat Exchanger
  • Fuel efficient; can use either kerosene or #2 diesel
  • Heavy duty coil is backed by a 5-year warranty
  • Large control panel with hour meter, reset switch & burner on/off switch
  • Maximum average temperature they can reach is between 170 and 190 degrees
• High Temperature Limit Switch
  • Burner can raise incoming water to 100° - 120°
  • Keeps heater unit within safe operation boundaries
• Ergonomic Hot Water Spray Gun w/ 48" Steel Lance
  • 4 quick connect nozzle tips: 15°, 25°, 40° and soap
  • 3/8" x 50-ft dual braid, non-marking Armor high pressure hose
• Heavy-Duty Steel Welded Frame: Powder-coated finish for durability and corrosion resistance


• Manufacturer Limited Warranty: 3-yr on engine, 5-yr on pump, 10-yr on frame & 90-days on accessories

Specifications:

• Grade: Commercial
• Water Temperature: Hot
• Flow Rate: 5.5 GPM
• Maximum Water Pressure: 3500 PSI
• Frame Type: Skid Mount
• Warranty: 3 Year Commercial Engine, 3 Year Consumer Engine, 5 Year Commercial Pump, 5 Year Consumer Pump, 90 Day Commercial, and 90 Day Consumer

Dimensions:

• Height: 37-1/8"
• Width: 45-1/4"
• Length: 41-3/4"
• Product Weight: 639 lbs
• Hose Length: 50 ft
• Hose Diameter: 3/8"

Engine and Motor Specifications:

• 678 CC
• Starting System: 12-Volt
• Fuel Tank Capacity: 10 Gals
• Fuel Type: Gas
• Burner Fuel Tank Capacity: 10 Gals
• Burner Fuel Type: Diesel, Kerosene
