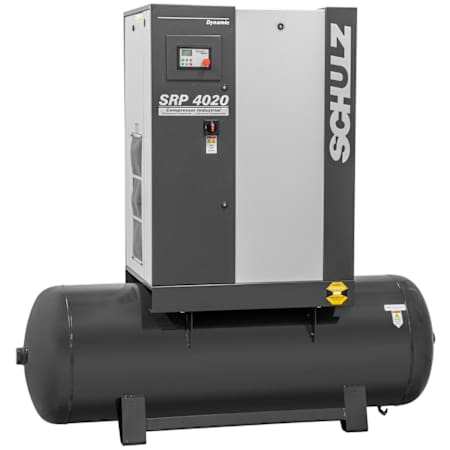

Schulz 20 HP 120 Gal 125 Max PSI Dynamic Stationary Electric (230 Volt 3 Phase) Rotary Air Compressor

Product Information:

• SRP 4020E Dynamic 20-HP 120-Gallon Rotary Screw Compressor (208-230V 3-Phase)
  • Combines technology and experience to generate efficiency and productivity
  • Synonymous with versatility for applications requiring high performance


• 2-In-1 System - Compressor & Receiver: Tank-mounted design allows for a compact foot print


• Continuous 100% Duty Cycle: Runs your application efficiently 24/7


• Rotary Air End
  • 74 CFM @ 125 PSI (125 Max PSI); 100% Duty Cycle
  • Oil-injected, belt-driven design for efficient operation


• 20-HP TEFC IP55 Electric Motor (208-230V 3-Phase)
  • Provides an efficient and reliable power source
  • Automatic starters with phase and sequence failure detection


• 24V Microprocessor Controller
  • Easily adjustable parameters of operation
  • Provides constant reading for simple monitoring
  • Helps simplify troubleshooting compressor issues


• 120-Gallon Horizontal Air Receiver (ASME Certified): Ensures maximum safety during operation


• Sound Attenuated Cabinet
  • Reduces noise level to 68 dB(A)
  • Can operate in ambient temperatures up to 113 °F,


• 12-Month Warranty

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 39-13/16"
• Length: 58-1/2"
• Product Weight: 1146 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 1"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Lubrication Type: Oil Lubricated
• CFM: 74
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 20 HP
• dB Rating: 68
• Voltage: 230V
