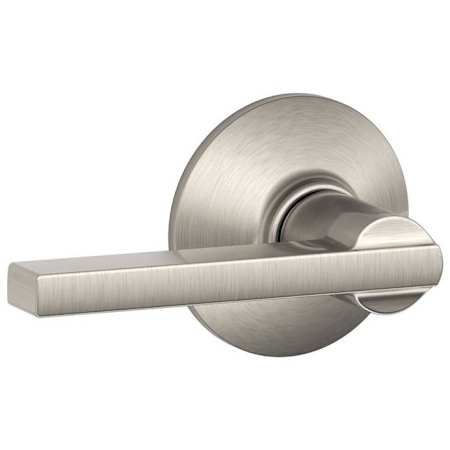

Schlage Latitude Passage Door Lever Set

Passage Function: Schlage's passage door lever sets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where a lock isn't necessary. Passage levers can also be used in conjunction with a deadbolt to secure an entrance or back door.

Schlage Works for You

Features:

• Adjusts to fit all standard door preparations
• Easy installation makes for a one-person project
• Interior screws are exposed
• ANSI/BHMA A156.2, 2011, Grade 2
• Reversible lever allows for use as both right-hand and left-hand levers
• Faceplates (Part 16-080): Supplied with 1/4" Round Corner and Drive-In Faceplates
• Strike Plates (Part 10-027): Supplied with a Round Strike with Dimensions of 2-1/4" x 1-5/8"
• Lifetime Mechanical and Finish Warranty (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and will patina over time)
• ADA Compliant

Specifications:

• Backset: Adjustable to 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 7/8"
• Door Thickness: 1-3/8" or 1-3/4"
• Handing: Left, Right, Reversible
• Lever Length: 4-1/2"
• Projection: 2-1/4"
• Product Weight: 1.55 lbs

Additional Functions:

• F10-LAT (This Model): Passage Leverset
• F40-LAT: Privacy Leverset
• F51-LAT: Keyed Entry Leverset
• F170-LAT: Single Dummy Lever
