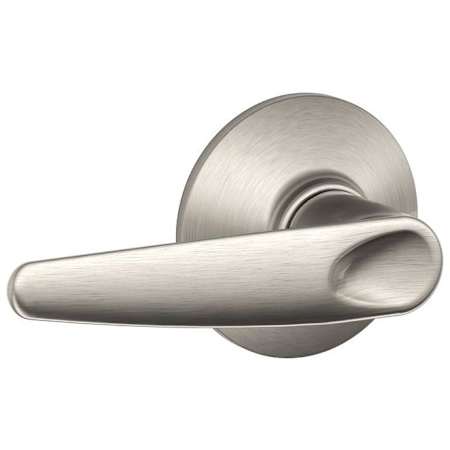

Schlage Jazz Passage Door Lever Set
Model: F10JAZ619|Item: bci490983
from theJazz Collection
$68.25
Finish: Satin Nickel -
268 In Stock
Finish: Satin Nickel -
268 In Stock
Satin Nickel
Function
Passage
$68.25
Privacy
$74.25
One Sided Single Dummy
$25.32
Passage
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-Details
Passage Door Lever Set from the Jazz Collection
- Interior screws are exposed
- Schlage Passage Lever Set.
- Both levers always unlocked.
- Unit is non handed and is field reversible.
- Faceplates (Part 16-080): Supplied with 1/4" Round Corner and Drive-In Faceplates
- Strike Plates (Part 10-027): Supplied with a Round Strike with Dimensions of 2-1/4" x 1-5/8"
Manufacturer Resources
Installation GuideDimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Characteristics and Features
Concealed Screws | No |
Function | Passage |
Handing | Left, Reversible, Right |
Handle Design | Jazz |
Handle Material | Metal |
Latch Faceplate | Drive-In, Round Corner |
Lever Shape | Straight |
Rosette Shape | Round |
Style | Contemporary/Modern |
Theme | Transitional |
Trim Design | Plymouth |
Characteristics and Features
Concealed Screws | No |
Function | Passage |
Handing | Left, Reversible, Right |
Handle Design | Jazz |
Handle Material | Metal |
Latch Faceplate | Drive-In, Round Corner |
Lever Shape | Straight |
Rosette Shape | Round |
Style | Contemporary/Modern |
Theme | Transitional |
Trim Design | Plymouth |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Jazz |
Series | F-Series |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Jazz |
Series | F-Series |
