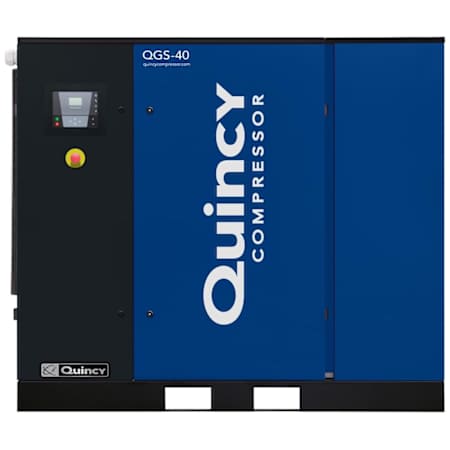

Quincy Compressor 40 HP 125 Max PSI Stationary Electric (230, 460 Volt 3 Phase) Rotary Air Compressor with Dryer

Product Information:

• Unit Is Too Large For Liftgate Service, Shipping Dock Or Forklift Required


• Quincy QGS Highly Efficient Gear-Driven Rotary Screw Compressor
  • Reliable gears eliminate belt changes and reduce transmission loss
  • Rated for 8,000 hours with premium synthetic lubrication; low oil carryover protects component


• Infologic2 Basic Controller
  • Network up to six QGS 20 to 30 HP units
  • Completely programmable auto-restart and remote start/stop


• Convenient Display Panel
  • Includes auto run, general alarm and power-on LED's
  • Pressure display, temperature and dewpoint display
  • Motor start limit; max & min temperature default settings


• 100% Duty Cycle TEFC Motor
  • Wye-Delta reduced voltage start for industrial applications
  • Delivered in 460V-3; includes kit for 230V-3 wiring, must be installed by a licensed electrician


• Integrated Refrigerant Air Dryer: Reduces corrosion and provides clean, dry air for your system


• Quiet Operation
  • Full sound enclosure for extra low noise levels
  • Rotary screw technology provides a quiet solution and greatly reduces vibration


• Increased Maintenance Simplicity
  • Fast and easy out of box installation
  • Hinged doors and detachable panels for quick access
  • Constant view fluid monitoring and spin-on fluid filter simplifies maintenance


• Extended 3 Year Factory Warranty Available: Must register with Quincy & use Quincy Maintenance Kits


• True Blue 5-Year Warranty with Quincy Authorized Start Up: Covers airend, motor, separator reservoir, cooler/heat exchanger


• Quincy Part #: 4152028080 - Quincy Model #: QGS 40 BMD-3

Specifications:

• Fuel Type: Electric
• Height: 49-3/16"
• Width: 30-11/16"
• Length: 55-1/8"
• Product Weight: 1087 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Pressure Gauge Included
• Filter Included

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Lubrication Type: Oil Lubricated
• CFM: 155
• Drive Type: Gear-driven rollers

Engine and Motor Specifications:

• Horsepower: 40 HP
• dB Rating: 71
• Voltage: 230, 460V
