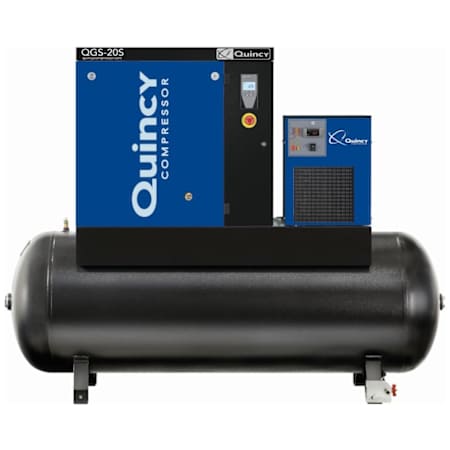

Quincy Compressor 20 HP 132 Gal 125 Max PSI Stationary Electric (208, 230, 460 Volt 3 Phase) Standard Rotary Air Compressor with Dryer

Product Information:

• Unit Is Too Large For Liftgate Service, Shipping Dock Or Forklift Required


• Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor Value Package
  • 100% continuous duty cycle with oil-injected twin screw pump
  • Rated for 8,000 hours with premium synthetic lubrication; low oil carryover protects component


• Value Package QGS-20S Series Features
  • Designed with a smaller air end
  • Produces 60.9 CFM with 71dBa sound level


• Infologic2 Basic Microprocessor Controller
  • Network up to six QGS 20 to 30 HP units
  • Completely programmable auto-restart and remote start/stop


• Convenient Display Panel
  • Includes auto run, general alarm and power-on LED's
  • Pressure display, temperature and dewpoint display
  • Motor start limit; max & min temperature default settings


• Integrated Refrigerant Air Dryer w/ Digital Controller: Reduces corrosion and provides clean, dry air for your system


• Quiet Operation
  • Full sound enclosure for extra low noise levels
  • Rotary screw technology provides a quiet solution and greatly reduces vibration


• TEFC Electric Motor (IP 55 Wash Down)
  • Protects the motor from dirt, moisture and weather
  • Wye-Delta reduced voltage start for industrial applications


• Increased Maintenance Simplicity
  • Fast and easy out of box installation
  • Hinged doors and detachable panels for quick access
  • Constant view fluid monitoring and spin-on fluid filter simplifies maintenance


• Extended 3 Year Factory Warranty Available: Must register with Quincy & use Quincy Maintenance Kits


• True Blue 5-Year Warranty with Quincy Authorized Start-Up: Covers airend, motor, separator reservoir and cooler/heat exchanger


• Quincy Part #: 4152022000 Quincy Model #: QGS 20S TMD-3

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 72-3/16"
• Width: 30-11/16"
• Length: 74"
• Product Weight: 1296 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 1"
• Tank Size: 132

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Lubrication Type: Oil Lubricated
• CFM: 61
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 20 HP
• dB Rating: 71
• Voltage: 208, 230, 460V
