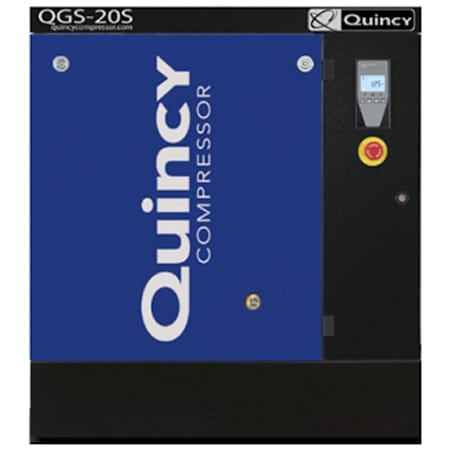

Quincy Compressor 20 HP 125 Max PSI Stationary Electric (208, 230, 460 Volt 3 Phase) Standard Rotary Air Compressor

Product Information:

• Superior Compressed Air Turn-Key Performance: Oil injected twin screw pump provides reliable, quiet power at 63 dBA


• InfoLogic Microprocessor Control Functions
  • Check compressor performance at a glance
  • Network up to six QGS 20-30 HP units


• Convenient Display Panel
  • Includes auto run, general alarm & power-on LED's
  • Pressure display, temperature & dewpoint display
  • Motor start limit; max & min temperature default settings


• Completely Programmable Auto Restart & Remote Start/Stop: Wye-Delta reduced voltage start for industrial applications


• Continuous 100% Duty Cycle
  • Runs your application quietly & efficiently 24/7
  • Ideal for most applications; 60.8 CFM at 125 PSI; 36°F min temp


• Premium Synthetic Lubrication: Rated for 8,000 hours; low oil carryover protects components


• TEFC Electric Motor (IP 55 Wash Down): 3-phase unit is capable of running on 208/230-460 voltage


• Extended 3 Year Factory Warranty Available: Must register with Quincy & use Quincy maintenance products


• Quincy Part #: 4152021944 - Quincy Model #: QGS 20S BM-3

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 48"
• Width: 31"
• Length: 53"
• Product Weight: 893 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Lubrication Type: Oil Lubricated
• CFM: 61
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 20 HP
• Voltage: 208, 230, 460V
