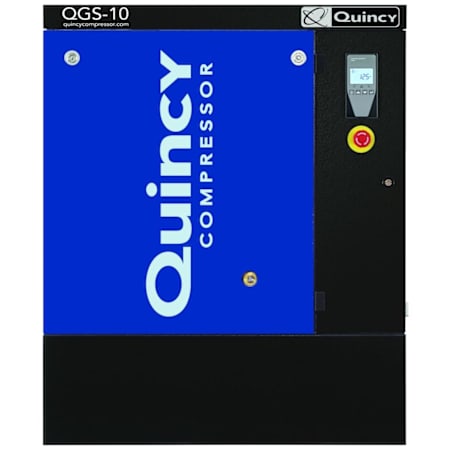

Quincy Compressor 10 HP 125 Max PSI Stationary Electric (208, 230, 460 Volt 3 Phase) Rotary Air Compressor
Model: QGS 10 BM-3|Item: bci5116235
from theQGS Rotary Collection
$9,142.00
Special Order
Horsepower
10-HP
$9,142.00
15-HP
$10,315.00
10-HP
Free Shipping!
Leaves the Warehouse in 17 to 20 weeks
-Details
Product Information:
- Superior Compressed Air Performance: Oil injected twin screw pump provides reliable, quiet power
- Compact, Modern Turn-Key Design: Small footprint allows for installation flexibility
- Continuous 100% Duty Cycle: Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 38.8 CFM at 125 PSI
- Premium Synthetic Lubrication: Rated for 8,000 hours; low oil carryover protects tools
- Auto-Dual Operation: Customize timed shut down settings for your operation
- Long Life V-Belt Drive: Less maintenance, reliable operation
- TEFC Electric Motor
- 3-phase unit is capable of running on 208/230-460 voltage
- (IP 55 wash down) Minimum operating temperature 36°F
- Extended 3 Year Factory Warranty Available: Must register with Quincy & use Quincy maintenance products
- Quincy Part #: 4152021936 - Quincy Model #: QGS 10 HPB-3
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 39"
- Width: 27"
- Length: 34"
- Product Weight: 374 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Filter Included
Pump Specifications:
- Oil Sight Glass Included
- Lubrication Type: Oil Lubricated
- CFM: 39
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Voltage: 208, 230, 460V
Dimensions and Measurements
CFM | 38.8 |
Height | 39 in. |
Length | 34 in. |
Product Weight | 374 lbs. |
Width | 27 in. |
Dimensions and Measurements
CFM | 38.8 |
Height | 39 in. |
Length | 34 in. |
Product Weight | 374 lbs. |
Width | 27 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 125 PSI |
Duty Cycle | 100 % |
Electronic Drain Valve Included | No |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Tank Type | Tankless |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 125 PSI |
Duty Cycle | 100 % |
Electronic Drain Valve Included | No |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Tank Type | Tankless |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 208, 230, 460 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 208, 230, 460 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
