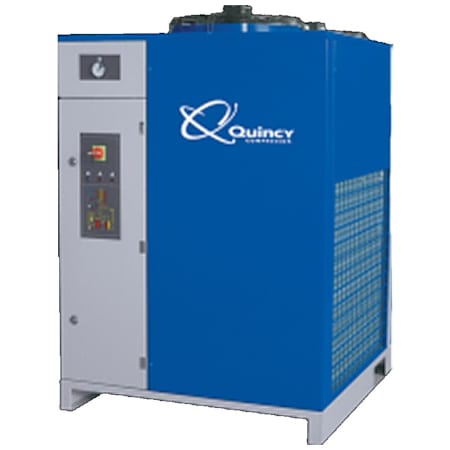

Quincy Compressor QPNC 750 3" Non-Cycling Refrigerated Air Dryer (750 CFM) (460V 3-Phase)

Product Information:

• Refrigerated Non-Cycling Dryer
  • Best suited for small systems with fairly constant loads
  • Purifies compressed air by chilling to condense moisture
  • Condensate is drained, carrying oil & dirt away from the air


• 2-Stage Heat Exchanger
  • Maintains consistent dew points
  • Freeze-ups prevented & optimum performance maintained


• Automatic Zero Loss Drain
  • Prevents build up of oil, dirt & moisture in compressed air
  • The most energy efficient drain


• Environmentally Safe Refrigerant (R404A)
  • No CFCs or HCFCs; zero ozone depletion potential (ODP)
  • Provides higher performance & efficiency potential


• Simple Control Panel
  • Run & alarm lights, analyzer gauge, start/stop switch w/ lock out
  • Also shows a diagram of the system flow


• Versatile
  • Handles 750 CFM at 100 PSI; 188 PSI maximum
  • Uses 460V-3 phase power; 3" NPT-F connector in & out


• Quincy Part #: - 4102003050 - Quincy Model #: QPNC 750

Specifications:

• Warranty: 2 Year Commercial and 2 Year Residential
• Product Weight: 717 lbs
• Fuel Type: Electric
• Height: 61"
• Length: 41"

Air Dryer Specifications:

• Air Inlet Size: 3"
• Air Outlet Size: 3"
• Automatic Drain Valve Included

Pump Specifications:

• After Cooler Included
