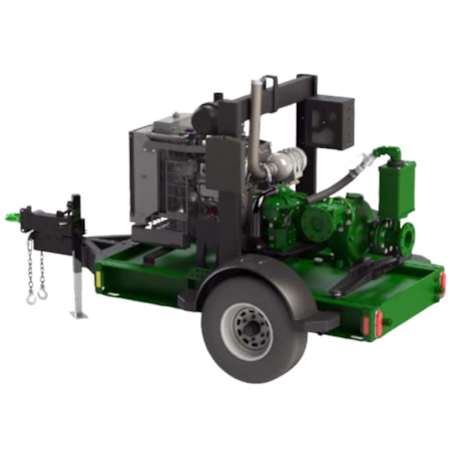

Pioneer Pump 1520 GPM (4") Trailer Mounted Electric Start Diesel Trash Pump with Deutz D2.9L Engine

Product Information:

• 4" Pioneer Prime Diesel-Driven Centrifugal Pump and Trailer Package
  • Designed and built for the toughest water / waste water environments
  • Provides better flow, higher heads and greater efficiency
  • Ideal for rental, construction, oil and gas, mining, and agricultural markets


• Deutz D2.9L, 4-Cylinder Diesel Engine (Tier 4 Final)
  • "Common Rail" injection system and highly-efficient combustion process
  • Provides high torque in a compact size, capable of doing the job of a much larger engine
  • Instrument panel with oil pressure gauge, voltmeter, hour meter and tachometer
  • Meets US EPA Tier 4 Final with an oxidation catalyst


• Pioneer Prime - A True Dry-Prime Pump (Run Dry)
  • Self-priming system with mechanically driven, diaphragm-style vacuum pump
  • Eliminates the need for water to prime and prevents product carryover
  • Maximizes lift capability and offers quick initial priming
  • Also provides continuous, unattended reprime under auto stop/start conditions


• Non-Clogging, Enclosed, ASTM A744 CA6NM Stainless Steel Impeller: Passes up to 3" diameter spherical solids


• Ductile Iron, Class 30 Pump Housing
  • Gear driven design helps to reduce wear of parts
  • Provides greater resistance to shock loading to extend pump life


• ASTM A536 Grade 65-45-12 Ductile Iron Volute, Cover and Suction Spool: Robust design for the most demanding pumping applications


• LOFA CP900 Control Panel with Auto-Start Controls
  • Compatible with High/Low level floats (Not Included) and transducers
  • Telemetry ready design to meet the needs of your unique application


• 75-Gallon Diesel Fuel Tank: Provides a minimum operating time of 36 Hours @ 1800 RPM


• Heavy-Duty, Department Of Transportation (DOT) Compliant Trailer
  • Vibration isolation mounts help extend product life
  • Electric brakes (7-Pin Plug) with breakaway switch; Pintle Hitch and Safety Chains
  • Stabilizing Jack; Side Step Fenders; LED Tail Lights and Marker Lights


• 2-Year Warranty


• Note* Item ships on a flatbed truck and delivery of this item requires a forklift, a crane or pallet jack and loading dock to unload
