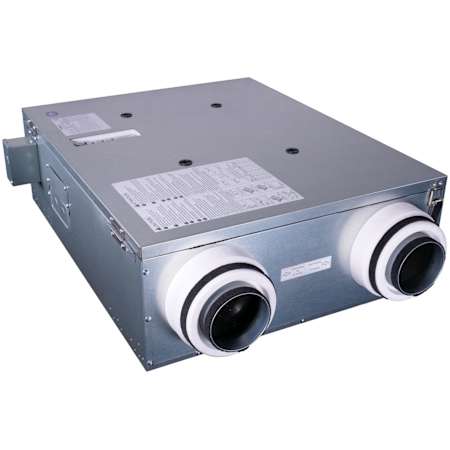

Panasonic Intelli-Balance 100 Hardwired Temperate Climate ERV With Multi Speed Selector And Two DC Motors

The FV-10VE2H Intelli-Balance 100 is a customizable, high-performance, high-efficiency Energy Recovery Ventilator (ERV) that’s designed to help you meet ASHRAE 62.2 requirements, supplying air to replace exhausted air, helping to balance air pressure within the home. Intelli-Balance 100 ERV uses four integrated dual 4-inch or 6-inch round duct adaptors — two to exhaust stale air and two to supply fresh air. This unique and cost-effective ERV was engineered for total versatility and installation flexibility. Intelli-Balance 100 uses two powerful ECM brushless motors with built-in SmartFlow technology. Intelli-Balance 100 includes a built-in Pick-A-Flow speed selector that provides the unique ability to select your required supply (30-40-50-60-70-80-90-100 CFM) and exhaust airflow (30-40-50-60-70-80-90-100 CFM), with the simple turn of a dial. The new occupant-controlled Boost function moves fan speed to high when activated. The adjustable Minutes Per Hour (Min/Hr) timer allows the user to set the number of minutes per hour the ERV should run. This Temperate Climate Model is recommended for areas where temperatures can drop as low as 14°F (-10°C). Achieve quality air and energy efficiency with whisper-quiet sound levels for your spaces. The FV-10VE2H has an 8-7/8-Inch housing depth. Hardwired model for use where direct wired power is required.

Features:

• Energy Recovery Ventilator (ERV): Remove moist, stale air and supply fresh, clean air in your home while balancing air pressure; Temperate Climate Model recommended for areas where temperatures can drop as low as 14°F (-10°C); MERV 8 filter included

• Optimized Airflow: Features 2 DC/ECM motors with a Pick-A-Flow selector (30 to 100 CFM) that allows you to select your required supply and exhaust with a Boost function moves fan speed to 100 CFM when activated

• Custom Controls: Boost function allows you to move fan speed to high when activated and adjustable Minutes Per Hour (Min/Hr) timer allows you to set the amount of time the ERV should run

• Explore Panasonic's Selection: Panasonic offers a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles

• Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with a high-performance Panasonic ventilation systems, air purification devices and HVAC solutions

• Depth: 8-7/8"
• Height: 8-7/8"
• Width: 23"
• Duct Size: 4" Round, 6" Round
• Voltage: 120V
• Wattage: 81W
• Amperage: 1.5A
• Product Weight: 26 lbs.
