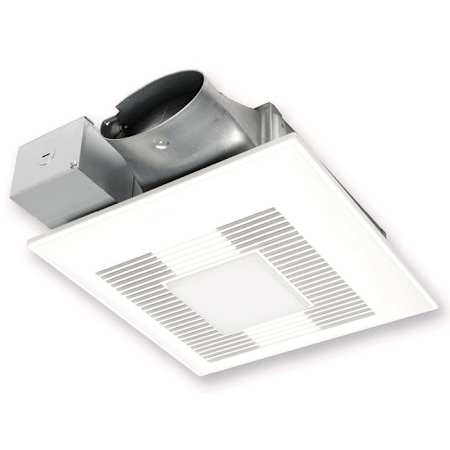

Panasonic 100 CFM 1.3 Sone Ceiling Mounted Energy Star Rated Exhaust Fan
Model: FV-0810VSSL1|Item: bci3373295
Fan Type
Details
The Panasonic FV-0810VSSL1 WhisperValue DC Ventilation Fan is designed with multi-speed that allows you to select proper, ASHRAE 62.2 code-compliant CFM settings that meet continuous ventilation requirements. This vent fan is ideal for all types of residential and multi-family construction. It features a revolutionary ECM motor with SmartFlow optimum CFM technology and incorporates a Pick-A-Flow airflow selector switch. The motor moves more air using less energy for an energy-efficient design and is equipped with a thermal-cutoff fuse. This vent fan's Pick-A-Flow airflow selector provides you with the flexibility and control to customize your airflow (80-100 CFM). This slim ventilation fan has a 3-3/8” depth, and its unique L-shaped bracket design provides strong support and makes for easy installation. The WhisperValue DC Ventilation Fan is Energy Star certified and is engineered to comply with Energy Star 4.0 requirements for increased efficiency (CFM/Watt), ensuring low cost and energy-efficient operation.
Features:
- Bathroom Vent Fan with Light: Equipped with a revolutionary DC/ECM motor and SmartFlow technology, this whisper quiet vent fan features a dimmable 3000K LED light with low power nightlight for warm, energy-efficient illumination; Duct diameter: 4" oval
- Customizable Airflow: This ventilation fan runs continuously at a preset lower level (0, 30-70, in 10 CFM increments), then elevates to a maximum level of operation (80 or 100 CFM) when the wall switch is turned on
- Easy Installation: This ultra-slim fan has a 3-3/8” depth, and its unique L-shaped bracket design provides strong support and makes for easy installation
- Explore Panasonic's Selection: Panasonic offers a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
- Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with a high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
- CFM: 80, 100
- Sones: 0.4, 0.9
- Bulb Type: LED
- Duct Size: 4"
- Grille Length: 13"
- Grille Width: 13"
- Housing Width: 12"
- Housing Length: 15-3/4"
- Housing Depth: 3-3/8"
- Amperage: 0.39
- Voltage: 120
Dimensions and Measurements
CFM | 100, 80, 70, 60, 50, 40, 30 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Depth | 3.375 in. |
Housing Length | 15.75 in. |
Housing Width | 12 in. |
Product Weight | 9.9 lbs. |
Rough Opening Length | 10.5 in. |
Dimensions and Measurements
CFM | 100, 80, 70, 60, 50, 40, 30 |
Duct Size | 4" Oval |
Grille Length | 13 in. |
Grille Width | 13 in. |
Housing Depth | 3.375 in. |
Housing Length | 15.75 in. |
Housing Width | 12 in. |
Product Weight | 9.9 lbs. |
Rough Opening Length | 10.5 in. |
Included Components
Heater Included | No |
Motion Sensor | No |
Included Components
Heater Included | No |
Motion Sensor | No |
Characteristics and Features
Bulb Type | LED |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Humidity Sensing | No |
Installation Type | Full Install |
Mount Type | Ceiling |
Night Light | Yes |
Characteristics and Features
Bulb Type | LED |
Decorative | No |
Duct Discharge | Horizontal |
Fan Type | Bath Fan |
Humidity Sensing | No |
Installation Type | Full Install |
Mount Type | Ceiling |
Night Light | Yes |
Electrical and Operational Information
Amperage | 0.18, 0.13, 0.10, 0.09, 0.08, 0.07, 0.06 |
Frequency | 60 Hertz |
Power Source | Hardwired |
RPM | 954, 856, 805, 770, 733, 723, 711 |
Sones | 0.9, 0.4, 0.3 |
Speeds | 8 |
Voltage | 120 |
Watts Per Bulb | 10 |
Electrical and Operational Information
Amperage | 0.18, 0.13, 0.10, 0.09, 0.08, 0.07, 0.06 |
Frequency | 60 Hertz |
Power Source | Hardwired |
RPM | 954, 856, 805, 770, 733, 723, 711 |
Sones | 0.9, 0.4, 0.3 |
Speeds | 8 |
Voltage | 120 |
Watts Per Bulb | 10 |
Warranty and Product Information
Certifications | ASHRAE, HVI, UL |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor, 5 Year LED |
Series | WhisperValue, WhisperValue DC |
Warranty and Product Information
Certifications | ASHRAE, HVI, UL |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 3 Year Parts, 6 Year Motor, 5 Year LED |
Series | WhisperValue, WhisperValue DC |
