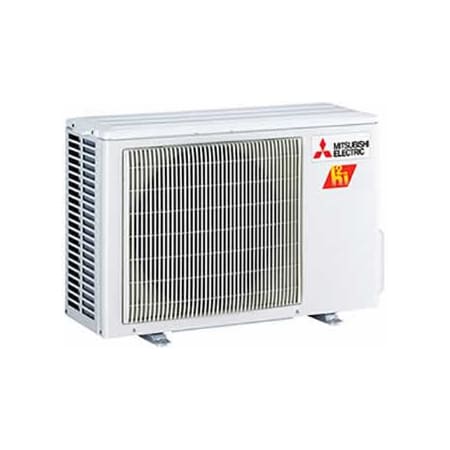

Mitsubishi M-Series H2i 12,000 BTU Cooling / 22,800 BTU Heating 25.5 SEER One Zone Mini Split Condenser Unit

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Outdoor condenser unit only, indoor evaporator unit(s) required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Will not function without associated indoor unit

Specifications:

• Cooling BTU Capacity: 12000
• Heating BTU Capacity: 22800
• Zone Capacity: 1
• Cooling Area: 450 Sq. Ft.
• Sound Level: 50 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 11-1/4"
• Height: 21-5/8"
• Width: 31-1/2"
• Recommended Breaker Size: 15 A
• Amperage: 9 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • AHRI
  • ETL
• Manufacturer Warranty: 5 Year Parts, 7 Year Compressor

Required Components:

• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
