MinkaAire
MinkaAire Pike 56" 3 Blade LED Ceiling Fan with Remote Included Brushed Nickel / Silver
LED
Title 24
LBR-CL
WHF
BN-SL
CL
ETL
MinkaAire Pike 56" 3 Blade LED Ceiling Fan with Remote Included Brushed Nickel / Silver
LED
Title 24
LBR-CL
WHF
BN-SL
CL
ETL

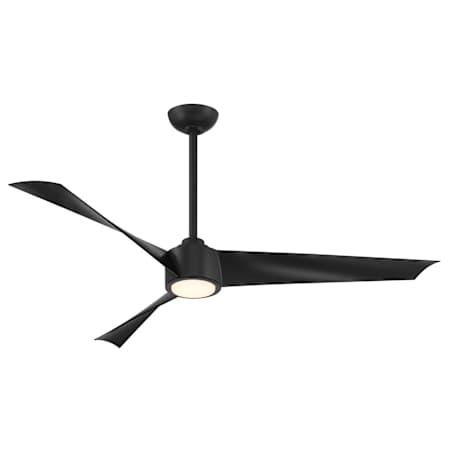

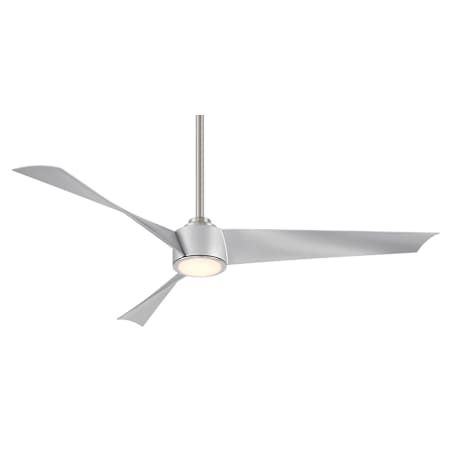

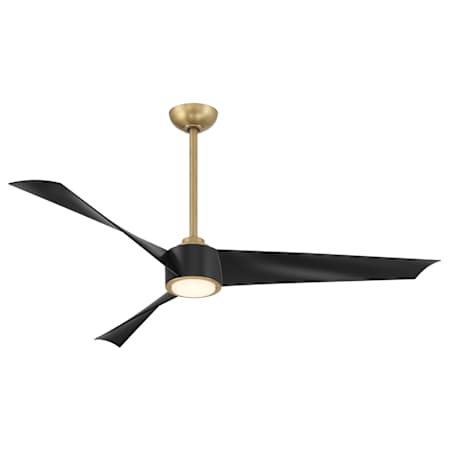

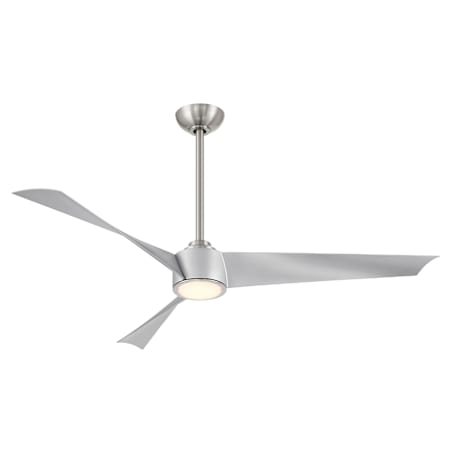

MinkaAire Pike 56" 3 Blade LED Ceiling Fan with Remote Included

Model: F774L-BN/SL
|
Item: bci4930927

Sale
Was $424.00
$339.2020% off
Finish: Brushed Nickel / Silver -
26 In Stock
Finish: Brushed Nickel / Silver -
26 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 3 business days
-
Return & Shipping Details

Details

MinkaAire F774L Pike 3 Blade Indoor Ceiling Fan

Features:

  • Includes: Three ABS Blades and Lens
    •    Brushed Nickel finish - Silver blades with Etched White lens
    •    Legacy Brass finish - Coal black blades with Etched White lens
    •    Coal black finish - Coal black blades with Etched White lens
    •    Flat White finish - Flat White blades with Etched White lens
  • Includes: 6" downrod
  • Includes: Remote control (RC1000)
  • Includes: 20 Watt LED Integrated Light (3 Year Warranty)
  • Energy Star Rated
  • ETL Rated for Dry Locations
  • Limited Lifetime Motor Warranty

RC1000 Hand Held AireControl® Remote System:

  • Six speed fan control in forward and reverse
  • On/Off plus full range light dimmer
  • Includes one (1) hand held remote control, wall holster
  • Wireless remote operation
  • Operates at distance of 23 feet
  • 1,024 frequency combinations

Product Technologies / Benefits:

  • AireControl® by MinkaAire® controls all functions. Reverse, fan light, speed control and also off-on.

Specifications:

  • Motor Size: DC 145mm x 18mm
  • Fan Speeds: 6
  • Height: 13-1/8"" (measured from ceiling to bottom most point)
  • Blade Sweep: 56"
  • Blade Pitch: 12°
  • Canopy Diameter (at ceiling): 6.25"
  • UL Rating: Dry Location
  • Product Weight: 10.76 lbs.
  • Airflow on High: 6,628 CFM (cubic feet per minute)
  • Watts on High: 42.27
  • Voltage: 120v

Intergrated LED:

  •    CRI - 90
  •    Color Temperature - 3000K
  •    Delivered Lumens - 1,602
  •    LED Lifetime - 30,000 hours
  •    Dimmable

Optional Accessories:

  • WC1000 Six Speed Wall Control
  • A245 Slope Ceiling Adapter (SCA)
  • Various downrod sizes
  • Downrod coupler (DR500)

Compliance:

  • ETL Listed - Indicates whether a product meets standards and compliance guidelines set by Nationally Recognized Testing Laboratory (NRTL). This listing determines what types of rooms or environments a product can be used in safely.
Additional MinkaAire Links

Manufacturer Resources

Specification Sheet

Dimensions and Measurements

Blade Pitch
12 Degrees
Blade Span
56 in.
Canopy Width
6.25 in.
CFM (High)
6628
CFM (Low)
2413
Height
13.19 in.
Width
56 in.

Dimensions and Measurements

Blade Pitch
12 Degrees
Blade Span
56 in.
Canopy Width
6.25 in.
CFM (High)
6628
CFM (Low)
2413
Height
13.19 in.
Width
56 in.

Included Components

Blades Included
Yes
Controller Included
Yes
Light Kit Included
Yes

Included Components

Blades Included
Yes
Controller Included
Yes
Light Kit Included
Yes

Characteristics and Features

Blade Finish
Black, White, Silver
Control Type
Remote
Fan Blade Material
ABS
Fan Type
Hanging
LED
Yes
Light Kit Compatible
No
Motor
AC Induction
Number of Blades
3
Reversible Blades
No
Reversible Motor
Yes
Sloped Ceiling Compatible
Yes

Characteristics and Features

Blade Finish
Black, White, Silver
Control Type
Remote
Fan Blade Material
ABS
Fan Type
Hanging
LED
Yes
Light Kit Compatible
No
Motor
AC Induction
Number of Blades
3
Reversible Blades
No
Reversible Motor
Yes
Sloped Ceiling Compatible
Yes

Electrical and Operational Information

Power Source
Hardwired
Reverse Switch Location
Remote
RPM (High)
148
RPM (Low)
55
Speeds
6
Voltage
120

Electrical and Operational Information

Power Source
Hardwired
Reverse Switch Location
Remote
RPM (High)
148
RPM (Low)
55
Speeds
6
Voltage
120

Warranty and Product Information

Certifications
ETL
Collection
Pike
Country Of Origin
China
Energy Star
Yes
Location Rating
Dry Location
Title 24
Yes

Warranty and Product Information

Certifications
ETL
Collection
Pike
Country Of Origin
China
Energy Star
Yes
Location Rating
Dry Location
Title 24
Yes
