The MinkaAire F541L-ORB has been discontinued
** See similar or replacement items below **
Item # bci3401201
MinkaAire Cone 54" Convertible 3, 4, or 5 Blade Indoor / Outdoor LED Ceiling Fan with Remote Included
Model: F541L-ORB|Item: bci3401201
from theCone Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
MinkaAire F541L 54" 3/4/5 Blade Indoor / Outdoor Ceiling Fan with Integrated LED Light Kit and Full Function Remote

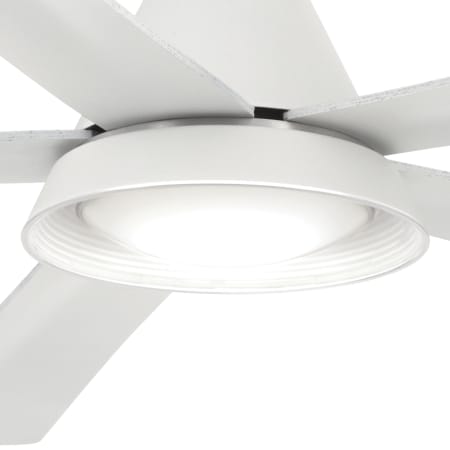

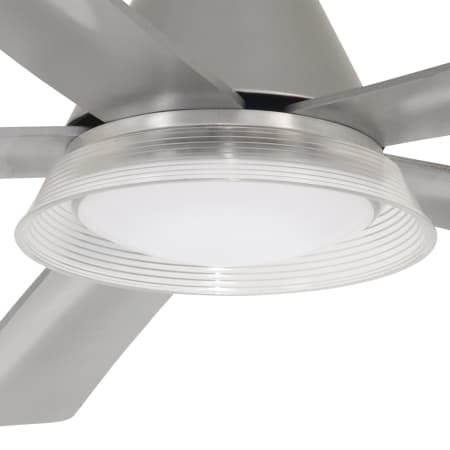

The LED Cone by MinkaAire lends an iconic presence to both indoor and outdoor settings for those who are looking for a blast from the past. This standard design offers an option for three, four, or five blades,as well as a clear and hooded light shade to create variations in illumination.
Features:
- Includes: Blades and Glass

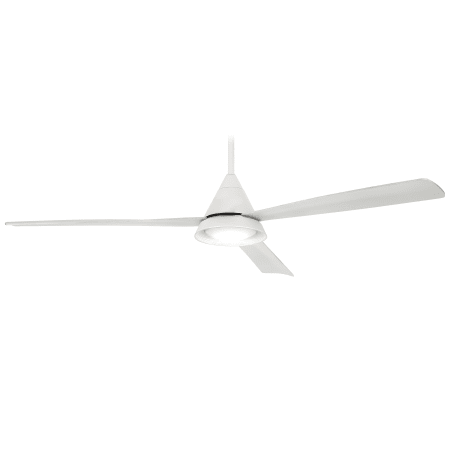

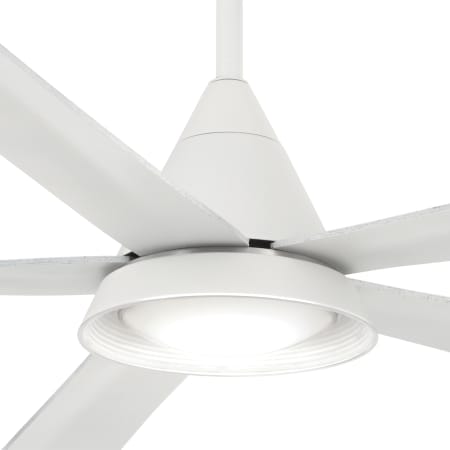

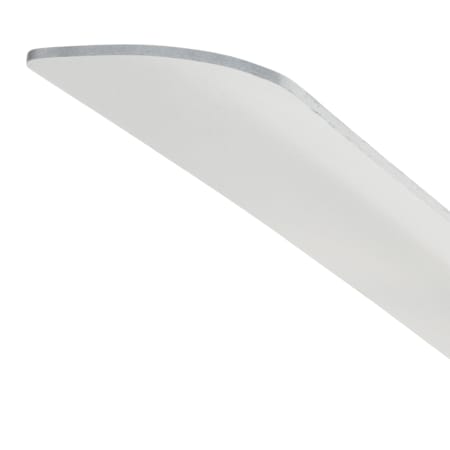

- White finish - White Blades with White Glass

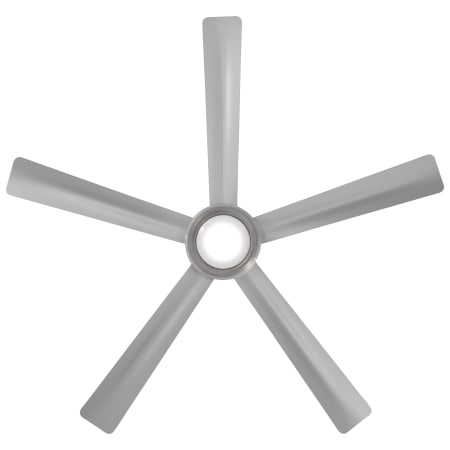

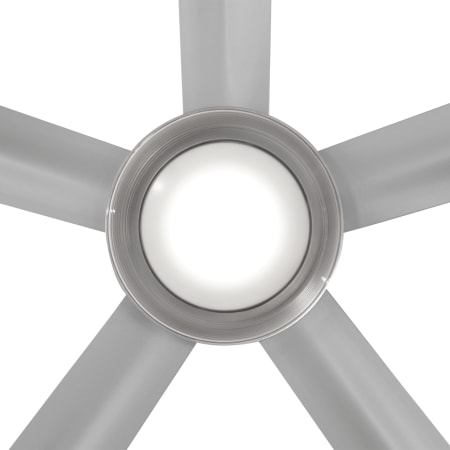

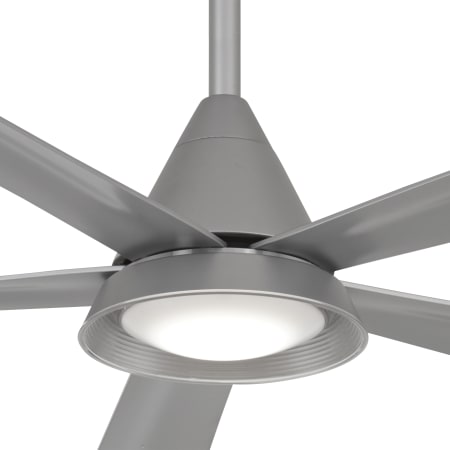

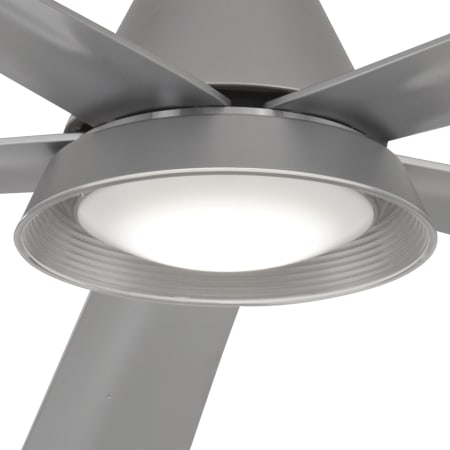

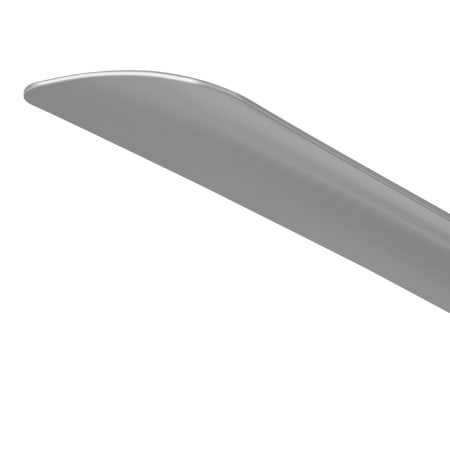

- Silver finish - Silver Blades with White Glass

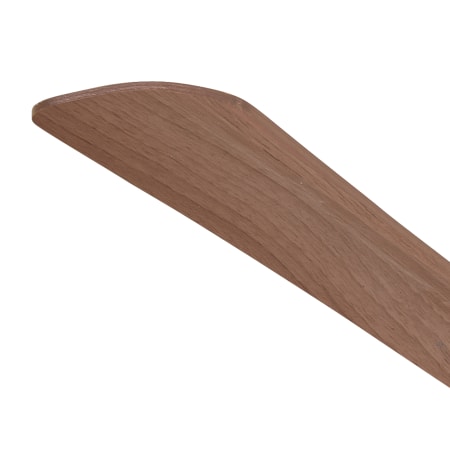

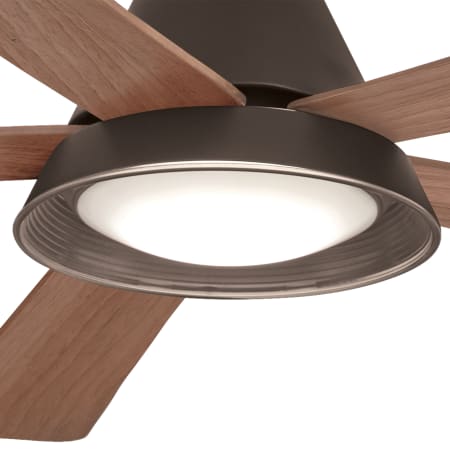

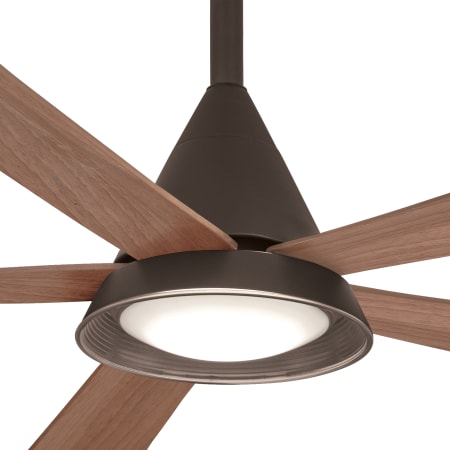

- Oil Rubbed Bronze finish - Medium Maple Blades with White Glass
- Includes: 6" downrod
- Includes: Remote control (RC400)
- Includes: 20 Watt LED Integrated Light (3 Year Warranty)
- Limited Lifetime Motor Warranty
RC400 Full Function Hand Held Remote System:
- Six speed fan control in forward and reverse
- On/Off plus full range light dimmer
- Includes one (1) hand held remote control (RC400), wall holster
- Wireless remote operation
- Operates at distance of 23 feet (Distance can vary dependent on construction of building and room fan is hung in
- 256-Bit Remote System
Product Technologies / Benefits:
- AireControl® by MinkaAire® controls all functions. Reverse, fan light, speed control and also off-on.
Specifications:
- Motor Size: DC 123mm x 30mm
- Fan Speeds: 6
- Blade Sweep: 54"
- Blade Pitch: 14°
- Height: 13.75"
- Hanging Weight: 13.44 lbs.
- UL Rating: Wet Location
- Airflow on High: 8385 CFM (cubic feet per minute)
- Watts on High: 179.55
- Voltage: 120
- LED:
- CRI - 97
- Color Temperature - 3000K
- Delivered Lumens - 1081
- Rated Life Hours - 30,000
- Dimmable
Optional Accessories:
- WC400 Six Speed Wall Control
- Bond (BD-1000) Wireless Smart Home Hub
- A245 Slope Ceiling Adapter (SCA)
- Various downrod sizes
Compliance:
- UL Listed - Indicates whether a product meets standards and compliance guidelines set by Underwriters Laboratories. This listing determines what types of rooms or environments a product can be used in safely.
Manufacturer Resources
Installation SheetBond Wireless Smart Home Hub Fact SheetSpecification Sheet - WHSpecification Sheet - SLSpecification Sheet - ORBDimensions and Measurements
Blade Pitch | 14 Degrees |
Blade Span | 54 in. |
CFM (High) | 8385 |
CFM (Low) | 2563 |
Downrod Size(s) | 6 in. |
Height | 13.75 in. |
Dimensions and Measurements
Blade Pitch | 14 Degrees |
Blade Span | 54 in. |
CFM (High) | 8385 |
CFM (Low) | 2563 |
Downrod Size(s) | 6 in. |
Height | 13.75 in. |
Included Components
Blades Included | Yes |
Blades Sold Separately | No |
Bulb Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Light Kit Included | Yes |
Included Components
Blades Included | Yes |
Blades Sold Separately | No |
Bulb Included | Yes |
Controller Included | Yes |
Downrod(s) Included | Yes |
Light Kit Included | Yes |
Characteristics and Features
Blade Finish | Oil Rubbed Bronze, Silver, White |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Control Type | Remote |
Dimmable | Yes |
Fan Blade Material | ABS |
Fan Type | Hanging |
Flush Mounting | No |
LED | Yes |
Light Kit Compatible | No |
Motor | DC Motor |
Number of Blades | 5 |
Reversible Blades | No |
Reversible Motor | Yes |
Sloped Ceiling Compatible | Yes |
Theme | Transitional |
Characteristics and Features
Blade Finish | Oil Rubbed Bronze, Silver, White |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 3000K |
Control Type | Remote |
Dimmable | Yes |
Fan Blade Material | ABS |
Fan Type | Hanging |
Flush Mounting | No |
LED | Yes |
Light Kit Compatible | No |
Motor | DC Motor |
Number of Blades | 5 |
Reversible Blades | No |
Reversible Motor | Yes |
Sloped Ceiling Compatible | Yes |
Theme | Transitional |
Electrical and Operational Information
Color Rendering Index (CRI) | 97 |
Energy Efficiency (CFM / Watt) | 179.55 |
Lumens | 1081 |
Power Source | Hardwired |
RPM (High) | 169 |
RPM (Low) | 102 |
Speeds | 6 |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 46.7 |
Electrical and Operational Information
Color Rendering Index (CRI) | 97 |
Energy Efficiency (CFM / Watt) | 179.55 |
Lumens | 1081 |
Power Source | Hardwired |
RPM (High) | 169 |
RPM (Low) | 102 |
Speeds | 6 |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 46.7 |
Warranty and Product Information
Certifications | UL |
Collection | Cone |
Country Of Origin | China |
Energy Star | No |
Location Rating | Wet Location |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Certifications | UL |
Collection | Cone |
Country Of Origin | China |
Energy Star | No |
Location Rating | Wet Location |
Manufacturer Warranty | Limited Lifetime |
