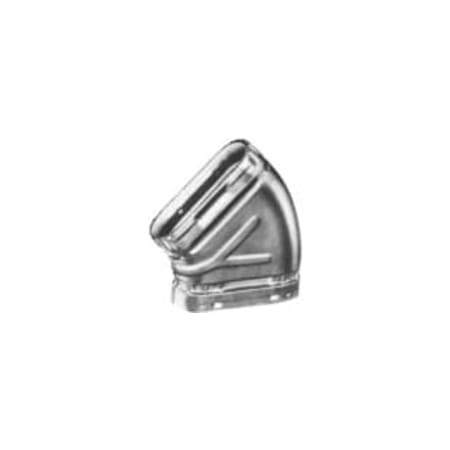

Metalbest OV 4" Oval 45 Degree Type B Gas Vent Flat Elbow

4" Oval 45 Degree Type B Gas Vent Flat Elbow from the OV Collection

When creating an offset in the vent pipe system, calculate the offset to determine the elbow angle. This elbow length creates a 45° bend. When used with a corresponding 45° elbow, the system will continue vertically toward the ceiling with the appropriate offset. Add pipe sections between pairs to produce additional offset. This flat elbow bends along a narrow side of the oval.

The OV series offers oval gas vent pipe and fittings and can be used for Type B, Type B 2x4, Type BW and Type B 2x6 depending on the pipe size. It features a snap together die formed ends, and is UL 441 listed. Note: Special factory supplied parts are required to use 4" OV as Type BW vent.

Features:

• Materials: Aluminum inner and Galvanized steel outer pipe
• Minimum Safety Clearance to Combustibles:
• 1" for diameters of 3" to 24"
• 2" for diameters 26" to 48"
