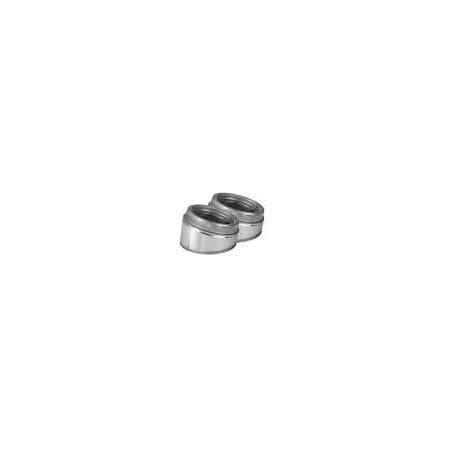

Metalbest 18" Inner Diameter - Galva-Temp Class A Chimney Pipe - Double Wall - 30 Degree Elbow Kit

When creating an offset in the chimney pipe system, calculate the offset to determine the elbow angle. This 30° elbow length creates a bend. When used with a corresponding 30° elbow, the system will continue vertically toward the ceiling with the appropriate offset.

Galva-Temp is designed for all-fuel applications and comes with a galvanized steel outer casing. Galva-Temp chimney pipe is insulated with 1" solid pack and UL Listed to UL-103 standards. With stainless steel inner pipe, 1-inch premium insulation, durable galvanized steel outer pipe, this is "the coolest under the hottest conditions".

Features:

• Stainless steel inner and galvanized outer pipe
• Clearance of 2" to combustibles
• Allowable Flue Gas Temperatures:
• Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
• Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
• Creosote Burn Out: 1700 Degrees Fahrenheit / 930 Degrees Celsius (3 x 10 min.)

Specifications:

• Fuel Type: Coal, Oil, Wood
• Material: Galvanized Steel
• Pipe Inside Diameter: 18"
• Vent Construction: Double Wall
• Pipe Shape: Round
• Outside Diameter: 20"
• Elbow by Angle: 30 (degree)
