The MEGA Compressor MP-2504T has been discontinued
** See similar or replacement items below **
Item # bci5120610

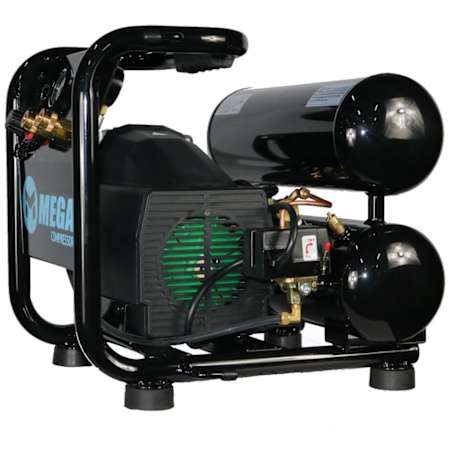

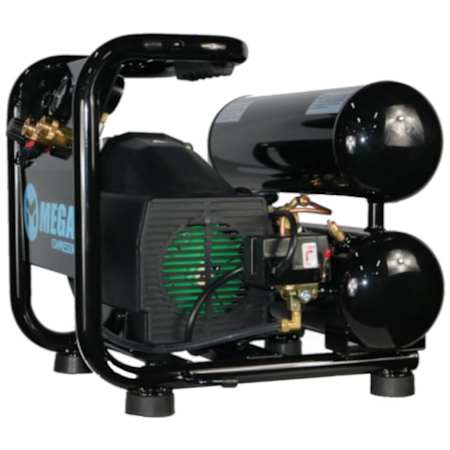

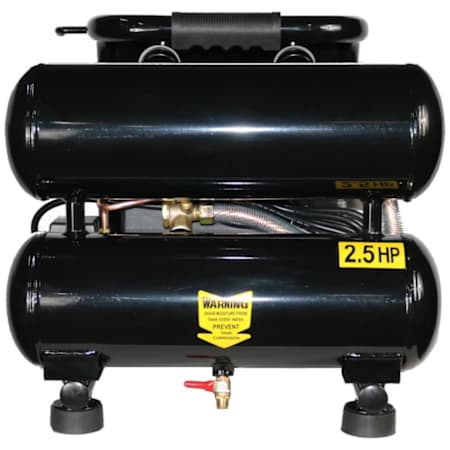

MEGA Compressor 2.5 HP 4 Gal 125 Max PSI Single-Stage Portable Electric (110 Volt) Reciprocating Air Compressor
Model: MP-2504T|Item: bci5120610
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Product Information:
- Durable 2.5-HP 3450 RPM Motor
- Pressure switch with on / off for reliable air
- 110V motor stands up to frequent use with low amp draw
- Continuous Duty Cycle
- Ideal for high-demand applications
- Air filters included for extra protection against dust and dirt
- Delivers 6.2 CFM @ 90 PSI; Max 125 PSI
- Use on the job or at home with all types of air tools
- Perfect for staple nail guns, airbrushes, inflating tires and much more
- Oil-Lubricated Pump
- Splash lubricated runs smooth and quiet
- Includes oil sight glass for easy maintenance
- 2-Gallon Twin Stack Tanks (4-Gallons Total)
- Lightweight at 69lbs with sturdy handle
- Large rubber feet prevent unit from moving around
- Top-Mounted Control Panel
- Two 1/4" air hose quick connector simplifies tool use
- Dual pressure gauges and built-in regulator for accurate pressure
- Thermal Overload Protector
- Protects motor from overheating
- Safety relief valve protects you in case of overload
- Manual Tank Drain: Prevents air contamination with routine draining
Specifications:
- Certifications: CSA
- Fuel Type: Electric
- Height: 20"
- Width: 20"
- Length: 20"
- Product Weight: 69 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 4
Pump Specifications:
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 6
- Drive Type: Direct Drive
Engine and Motor Specifications:
- Horsepower: 2.5 HP
- Amperage: 15A
- Voltage: 110V
- Voltage: 110V
Dimensions and Measurements
CFM | 6.2 |
Height | 20 in. |
Length | 20 in. |
Product Weight | 69 lbs. |
Width | 20 in. |
Dimensions and Measurements
CFM | 6.2 |
Height | 20 in. |
Length | 20 in. |
Product Weight | 69 lbs. |
Width | 20 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 7 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 4 |
Tank Type | Twin-Stack |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 7 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 4 |
Tank Type | Twin-Stack |
Electrical and Operational Information
Amperage | 15 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2.5 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 110 |
Electrical and Operational Information
Amperage | 15 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2.5 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 110 |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 1 Year Residential |
