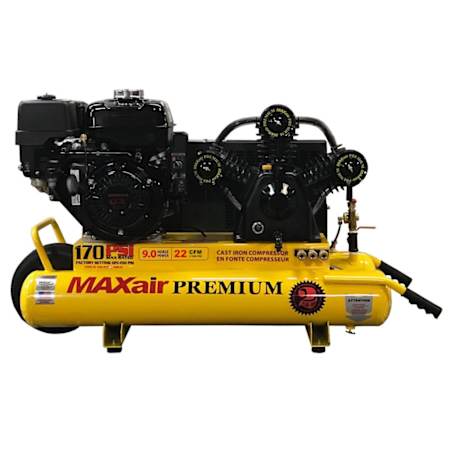

MAXair Premium 9 HP 10 Gal 170 Max PSI Single-Stage Portable Gas Reciprocating Air Compressor with Electric Start Honda Engine
Model: TT90GE-MAP|Item: bci5120484
Details
Product Information:
- Super High Air Flow
- Portable power produces 22 CFM at 90 PSI
- 170 PSI maximum pressure for optimum tool performance

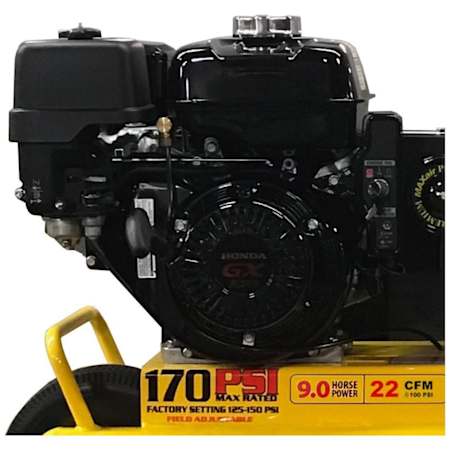

- Reliable Honda GX 270 Engine (CARB Approved) w/ Electric Start
- Automatic idle control provides fuel economy and long service life
- Low oil alert, easy start, quieter performance & lower fuel consumption
- Does not include battery for electric start; Must purchase separately
- Solid Cast Iron Pump
- Convenient and easy viewing oil site glass
- "V" Design minimizes vibration, improves cooling, extends compressor life
- Individual & Removable Cylinders: For smoother, cooler operation and easy maintenance
- High-Quality Features
- High efficiency reed valves for maximum performance
- Premium air filters with auto drop feature for easy maintenance
- Efficient heat removal from pully-fan for cooler running and longer life
- Top-Mounted Control Panel

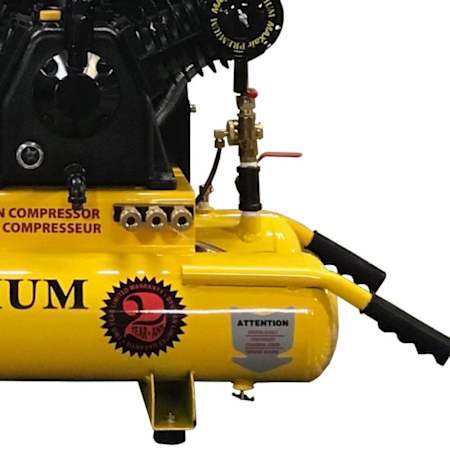

- Outlet control regulator with 3 quick connect couplers
- Liquid filled pressure gauges for quick and easy reading

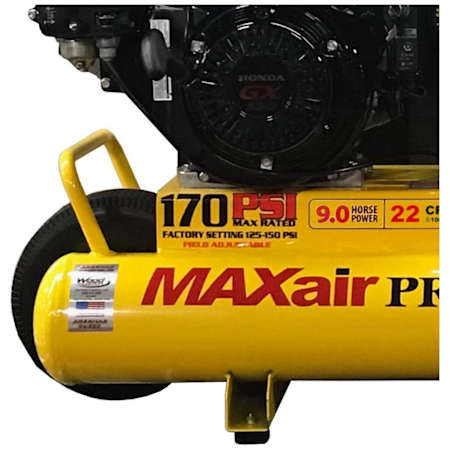

- 10-Gallon Capacity Twin Wheelbarrow Style Tanks
- Fully enclosed belt guard protects you and the belt
- Steel rim tire for easy handling and maneuverability
- Manual tank drain for quick tank draining to prevent rust
- Generous Factory Warranty: 2 years for consumer or commercial use; 90 days on parts
Specifications:
- Fuel Type: Gas
- Height: 28"
- Width: 18"
- Length: 50"
- Product Weight: 215 lbs
- Warranty: 2 Year Commercial, 2 Year Residential, 3 Year Commercial Engine, and 3 Year Residential Engine
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 10
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 19
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Auto Idle Mode Included
- 270 CC
- Honda GX
- Horsepower: 9 HP
Dimensions and Measurements
CFM | 18.5 |
Height | 28 in. |
Length | 50 in. |
Product Weight | 215 lbs. |
Width | 18 in. |
Dimensions and Measurements
CFM | 18.5 |
Height | 28 in. |
Length | 50 in. |
Product Weight | 215 lbs. |
Width | 18 in. |
Included Components
Battery Included | No |
Filter Included | Yes |
Included Components
Battery Included | No |
Filter Included | Yes |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 10 |
Tank Type | Wheelbarrow |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 10 |
Tank Type | Wheelbarrow |
Electrical and Operational Information
Cubic Capacity | 270 cc |
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Commercial |
Horsepower | 9 |
Maximum Operating Pressure (PSI) | 170 |
Stages | Single-Stage |
Starting System | Recoil Start |
Electrical and Operational Information
Cubic Capacity | 270 cc |
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Commercial |
Horsepower | 9 |
Maximum Operating Pressure (PSI) | 170 |
Stages | Single-Stage |
Starting System | Recoil Start |
Warranty and Product Information
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential, 3 Year Commercial Engine, 3 Year Residential Engine |
Warranty and Product Information
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential, 3 Year Commercial Engine, 3 Year Residential Engine |
