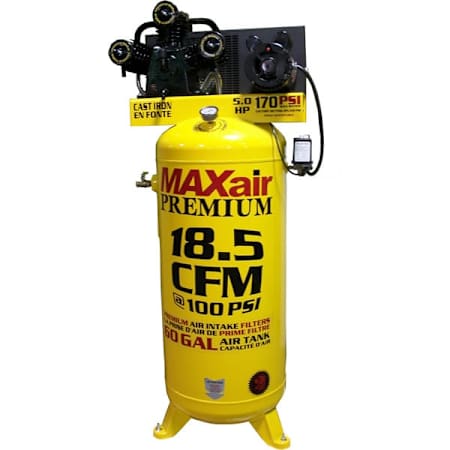

MAXair Premium 5 HP 60 Gal 150 Max PSI 18.5 CFM Single-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor
Model: C5160V1-MAP|Item: bci5120910
$1,806.48
23 In Stock
Details
Product Information:
- Rugged Cast Iron Cylinders: Built to work hard and last a long time
- "V" Design: Minimizes vibration, improves cooling, extends compressor life
- Individual & Removable Cylinders: For smoother & cooler operation
- Heavy Duty Pressure Switch: With convenient on/off control
- Metal Air Filters With "Auto Drop" Feature: Extends compressor life, easy to maintain
- 208/230V Single Phase Motor: Thermally protected; mag starter not required
- 60 Gallon ASME Tank Rated To 150 PSI
- Liquid filled pressure gauge is easy to read
- Convenient oil drain on front of unit
- Easy view oil sight gauge
- 2 Year Manufacturer's Warranty: Extends to 3 years with Maintenance Kit added at time of purchase
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 67"
- Width: 23"
- Length: 31"
- Product Weight: 280 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 19
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 18.5 |
Height | 67 in. |
Length | 31 in. |
Product Weight | 280 lbs. |
Width | 23 in. |
Dimensions and Measurements
CFM | 18.5 |
Height | 67 in. |
Length | 31 in. |
Product Weight | 280 lbs. |
Width | 23 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
