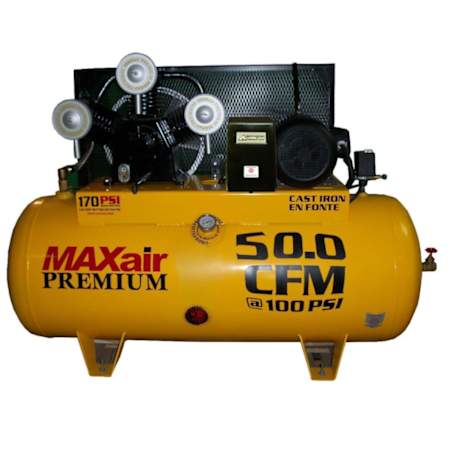

MAXair Premium 10 HP 120 Gal 170 Max PSI Single-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor
Model: C103120H1-MS208-MAP|Item: bci5120412
$4,899.99
Special Order
Details
Product Information:
- MaxAir Premium Single-Stage Stationary Air Compressor
- Advanced features and superior performance
- Can be installed and operated in all garages, farm shops & industrial applications
- 10-HP Industrial 1750 RPM Electric Motor
- Durable 184 frame and thermal protection
- Low RPM design reduces heat for less & tear
- Rugged Cast Iron "V" Style 3 Cylinder Pump
- High efficiency reed valves for maximum performance
- V-style minimizes vibration, improves cooling for longer service
- Removable cylinders for smooth operation & easy maintenance
- Efficient heat removal from flywheel for cooler running & longer life
- Reliable High-Quality Features
- Prewired magnetic starter for a trouble-free operation
- Pressure switch with On/Off control for efficient air demand
- Premium "Auto Drop" Air Filters: Automotive style filter elements; no hassle replacement
- 120 Gallon ASME Certified Air Tank
- Heavy duty 3/4" ball valve included
- Government registered tank; rated to 200 PSI
- Pro-Style Gauges
- Liquid filled pressure gauge is easy to read
- Easy-view oil sight gauge for optimum maintenance
- Convenient Drains
- Extended oil drain allows for easy access
- Moisture drain on front of tank eliminates scraped knuckles
- Generous 2-Year Commercial Manufacturer Warranty
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 50"
- Width: 27"
- Length: 72"
- Product Weight: 741 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 120
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 50
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Voltage: 208V
- Voltage: 208V
Dimensions and Measurements
CFM | 50 |
Height | 50 in. |
Length | 72 in. |
Product Weight | 741 lbs. |
Width | 27 in. |
Dimensions and Measurements
CFM | 50 |
Height | 50 in. |
Length | 72 in. |
Product Weight | 741 lbs. |
Width | 27 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 170 |
Stages | Single-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 170 |
Stages | Single-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
