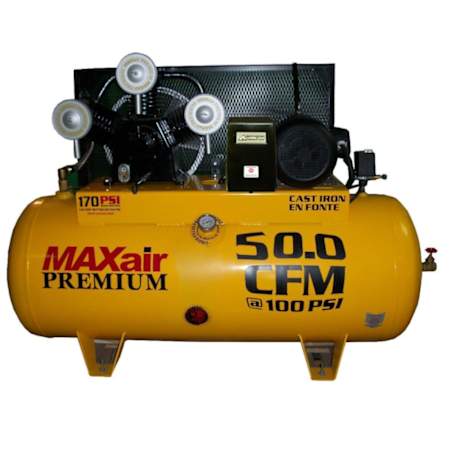

MAXair Premium 10 HP 120 Gal 170 Max PSI Single-Stage Stationary Electric (208 Volt 1 Phase) Reciprocating Air Compressor

Product Information:

• MaxAir Premium Single-Stage Stationary Air Compressor
  • Advanced features and superior performance
  • Can be installed and operated in all garages, farm shops & industrial applications


• 10-HP Industrial 1750 RPM Electric Motor
  • Durable 184 frame and thermal protection
  • Low RPM design reduces heat for less & tear


• Rugged Cast Iron "V" Style 3 Cylinder Pump
  • High efficiency reed valves for maximum performance
  • V-style minimizes vibration, improves cooling for longer service
  • Removable cylinders for smooth operation & easy maintenance
  • Efficient heat removal from flywheel for cooler running & longer life


• Reliable High-Quality Features
  • Prewired magnetic starter for a trouble-free operation
  • Pressure switch with On/Off control for efficient air demand


• Premium "Auto Drop" Air Filters: Automotive style filter elements; no hassle replacement


• 120 Gallon ASME Certified Air Tank
  • Heavy duty 3/4" ball valve included
  • Government registered tank; rated to 200 PSI


• Pro-Style Gauges
  • Liquid filled pressure gauge is easy to read
  • Easy-view oil sight gauge for optimum maintenance


• Convenient Drains
  • Extended oil drain allows for easy access
  • Moisture drain on front of tank eliminates scraped knuckles


• Generous 2-Year Commercial Manufacturer Warranty

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 50"
• Width: 27"
• Length: 72"
• Product Weight: 741 lbs
• Warranty: 2 Year Commercial and 2 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 50
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Voltage: 208V
• Voltage: 208V
