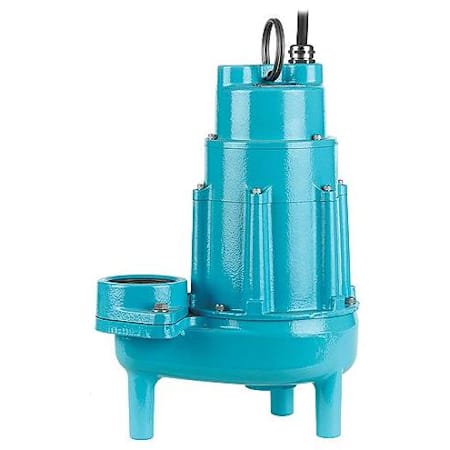

Little Giant 18S-CIM Submersible Sewage Ejector Pump, 1-1/2 HP, 460V
Model: 520304|Item: bci2130496
from the18S Collection
$1,838.57
2 In Stock
Options
208 VAC
$1,803.86
208 / 230 VAC
$1,621.00
460 VAC 3-Phase
$1,838.57
460 VAC 3-Phase
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-Details
Features:
- Vortex brass impeller
- 1-1 / 2 hp permanent split capacitor motor
- The manufacturer model number(s): Little Giant 520304
Dimensions and Measurements
Cord Length | 40 ft. |
Depth | 13 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 160 |
Flow Rate by Feet of Head | 111 gal / 30 ft, 84 gal / 40 ft, 15 gal / 60 ft, 50 gal / 50 ft, 160 gal / 10 ft, 127 gal / 20 ft |
Height | 19.07 in. |
Length | 12.93 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 64 ft. |
Minimum Head Height | 10 ft. |
Product Weight | 96 lbs. |
Shut Off Height | 64 in. |
Shut Off Pressure | 27.7 |
Water Connection | 3" |
Water Pressure (Max) | 27.7 PSI |
Width | 8.42 in. |
Dimensions and Measurements
Cord Length | 40 ft. |
Depth | 13 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 160 |
Flow Rate by Feet of Head | 111 gal / 30 ft, 84 gal / 40 ft, 15 gal / 60 ft, 50 gal / 50 ft, 160 gal / 10 ft, 127 gal / 20 ft |
Height | 19.07 in. |
Length | 12.93 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 64 ft. |
Minimum Head Height | 10 ft. |
Product Weight | 96 lbs. |
Shut Off Height | 64 in. |
Shut Off Pressure | 27.7 |
Water Connection | 3" |
Water Pressure (Max) | 27.7 PSI |
Width | 8.42 in. |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Submersible Pump |
Housing Material | Cast Iron |
Impeller Material | Brass |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 64 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Submersible Pump |
Housing Material | Cast Iron |
Impeller Material | Brass |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 64 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 5.3 |
Electrical Phases | 3, 1 |
Frequency | 60 Hertz |
Horsepower | 2 |
Maximum Fluid Temperature | 140 °F |
Voltage | 460 |
Electrical and Operational Information
Amperage | 5.3 |
Electrical Phases | 3, 1 |
Frequency | 60 Hertz |
Horsepower | 2 |
Maximum Fluid Temperature | 140 °F |
Voltage | 460 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
