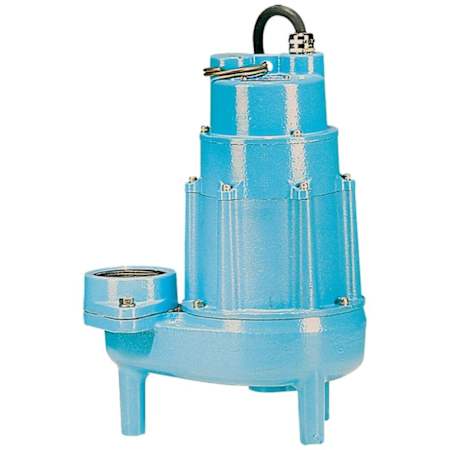

Little Giant 18S-CIM - 1-1/2 HP Cast Iron Sewage Pump (3") with 20' Cord (Non-Automatic) (208V)
Model: 520300|Item: bci2130493
from the18S Collection
$1,803.86
Special Order
Options
208 VAC
$1,803.86
208 / 230 VAC
$1,621.00
460 VAC 3-Phase
$1,838.57
208 VAC
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-Details
Features:
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Little Giant 18S-CIM - 1-1/2 HP Sewage Pump (208V)
- For use in residential, commercial, industrial and agricultural applications
- Ideal for light to medium transfer demands
- Epoxy Powder Coated Cast Iron Construction: Provides excellent corrosion-resistance and durability
- Heavy-Duty 1-1/2 HP Single-Phase Motor
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- 3" FNPT Threaded Discharge: Easily connect to your existing discharge without any changes
- Epoxy Coated Cast Iron Volute w/ Brass Impeller: Non-clogging design passes up to 2" spherical solids
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection in harsh wastewater conditions
- 420 Stainless Steel Shaft w/ Upper/Lower Ball Bearings: Minimizes friction while providing smooth and quiet operation
- 20' STW Power Cord
- 64' Max Shutoff Head
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 20 ft. |
Depth | 13 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 160 |
Flow Rate by Feet of Head | 160 gal / 10 ft, 50 gal / 50 ft, 84 gal / 40 ft, 15 gal / 60 ft, 111 gal / 30 ft, 127 gal / 20 ft |
Height | 19.07 in. |
Length | 12.93 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 64 ft. |
Minimum Head Height | 10 ft. |
Product Weight | 96 lbs. |
Shut Off Height | 64 in. |
Shut Off Pressure | 27.7 |
Water Connection | 3" |
Water Pressure (Max) | 27.7 PSI |
Width | 8.42 in. |
Dimensions and Measurements
Cord Length | 20 ft. |
Depth | 13 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 160 |
Flow Rate by Feet of Head | 160 gal / 10 ft, 50 gal / 50 ft, 84 gal / 40 ft, 15 gal / 60 ft, 111 gal / 30 ft, 127 gal / 20 ft |
Height | 19.07 in. |
Length | 12.93 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 64 ft. |
Minimum Head Height | 10 ft. |
Product Weight | 96 lbs. |
Shut Off Height | 64 in. |
Shut Off Pressure | 27.7 |
Water Connection | 3" |
Water Pressure (Max) | 27.7 PSI |
Width | 8.42 in. |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Submersible Pump |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Brass |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Pump Material | Cast Iron |
Shutoff Head in Feet | 64 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Submersible Pump |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Brass |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Pump Material | Cast Iron |
Shutoff Head in Feet | 64 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 16 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 1.5 |
Maximum Fluid Temperature | 140 °F |
Voltage | 208 |
Electrical and Operational Information
Amperage | 16 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 1.5 |
Maximum Fluid Temperature | 140 °F |
Voltage | 208 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
