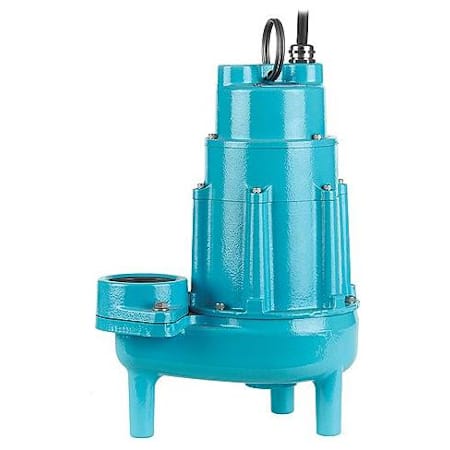

Little Giant 20S-CIM Manual Submersible Sewage Ejector Pump, 200-208V
Model: 520125|Item: bci2130498
from the20S Collection
$1,800.00
1 In Stock
Voltage
208 / 230 VAC - Single Phase
$1,625.50
200 / 208 VAC - 3-Phase
$1,800.00
230 VAC - 3-Phase
$1,834.50
460VAC - 3-Phase
$1,800.00
200 / 208 VAC - 3-Phase
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-Details
Features:
- Upper and lower ball bearings
- UL / CSA listed
- Handles 2" solids
- Epoxy coated cast iron housing, cover and volute
- Designed for continuous duty
- Carbon / ceramic shaft seal
- Brass impeller
- 3" FNPT ( 76 mm ) discharge
- 2 hp permanent spilt capacitor motor
- Our SKU number(s): Little Giant 520125
- The manufacturer model number(s): Little Giant 520125
Dimensions and Measurements
Cord Length | 20 ft. |
Depth | 12.93 in. |
Discharge Diameter | 1.25 in. |
Flow Rate (GPM) | 205 |
Flow Rate by Feet of Head | 205 gal / 10 ft, 140 gal / 30 ft, 120 gal / 40 ft, 168 gal / 20 ft |
Height | 19.07 in. |
Length | 12.93 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 77 ft. |
Minimum Head Height | 10 ft. |
Product Weight | 96 lbs. |
Shut Off Height | 77 in. |
Shut Off Pressure | 33.3 |
Water Connection | 3" |
Water Pressure (Max) | 33.3 PSI |
Width | 8.42 in. |
Dimensions and Measurements
Cord Length | 20 ft. |
Depth | 12.93 in. |
Discharge Diameter | 1.25 in. |
Flow Rate (GPM) | 205 |
Flow Rate by Feet of Head | 205 gal / 10 ft, 140 gal / 30 ft, 120 gal / 40 ft, 168 gal / 20 ft |
Height | 19.07 in. |
Length | 12.93 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 77 ft. |
Minimum Head Height | 10 ft. |
Product Weight | 96 lbs. |
Shut Off Height | 77 in. |
Shut Off Pressure | 33.3 |
Water Connection | 3" |
Water Pressure (Max) | 33.3 PSI |
Width | 8.42 in. |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Submersible Pump |
Housing Material | Cast Iron |
Impeller Material | Brass |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 77 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Configuration | Submersible Pump |
Housing Material | Cast Iron |
Impeller Material | Brass |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 77 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 14.5 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Horsepower | 2 |
Maximum Fluid Temperature | 140 °F |
Voltage | 208 |
Electrical and Operational Information
Amperage | 14.5 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Horsepower | 2 |
Maximum Fluid Temperature | 140 °F |
Voltage | 208 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
