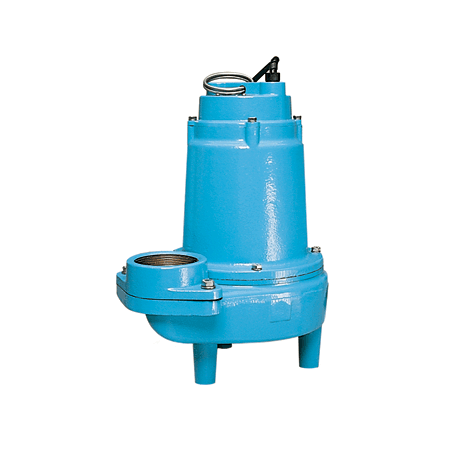

Little Giant 16S 160 GPM 200-208V Submersible Sewage Pump with 20' Cord
Model: 514625|Item: bci2130486
from the16S Collection
Details
The 16S Series submersible pumps from Little Giant are specifically engineered to handle the tough demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability. Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands.
Product Features:- 1 Horse Power with overload protection
- New cooler running motor which extends the life of the pump
- Designed for continuous duty
- Covered by 12 month limited warranty
- Handles 2" solids
- Cover made from: Cast iron
- Housing made from: Cast iron
- Impeller Type: Non-clog
- Impeller made from: Cast iron
- Switch Type: Manual
- Single phase operation
- 40' Cord included
- UL/CSA listed
- 1 Horse Power
- Voltage: 200V - 208V
- 11 Amp maximum operation
- 3" Discharge diameter
- Length: 14-1/10"
- Width: 9-9/10"
- Height: 17-1/5"

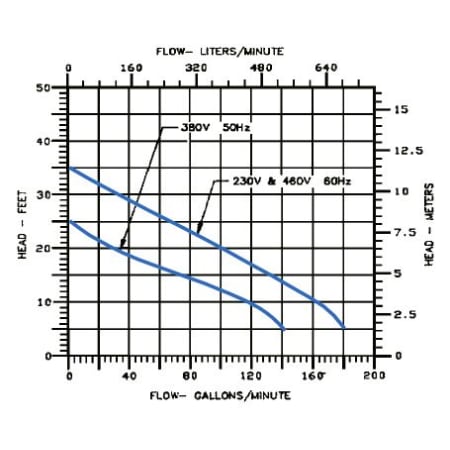

- Flow rates (GPH: gallons-per-hour):
- At 10 feet of head: 160
- At 20 feet of head: 100
- At 30 feet of head: 40
Dimensions and Measurements
Cord Length | 480 in. |
Depth | 14.1 in. |
Discharge Diameter | 3 in. |
Flow Rate by Feet of Head | 160 gal / 10 ft, 100 gal / 20 ft, 40 gal / 30 ft |
Height | 17.2 in. |
Length | 14.1 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 35 in. |
Minimum Head Height | 10 in. |
Product Weight | 88 lbs. |
Shut Off Height | 35 in. |
Shut Off Pressure | 15.1 |
Water Connection | 2" |
Water Pressure (Max) | 15.1 PSI |
Width | 9.9 in. |
Dimensions and Measurements
Cord Length | 480 in. |
Depth | 14.1 in. |
Discharge Diameter | 3 in. |
Flow Rate by Feet of Head | 160 gal / 10 ft, 100 gal / 20 ft, 40 gal / 30 ft |
Height | 17.2 in. |
Length | 14.1 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 35 in. |
Minimum Head Height | 10 in. |
Product Weight | 88 lbs. |
Shut Off Height | 35 in. |
Shut Off Pressure | 15.1 |
Water Connection | 2" |
Water Pressure (Max) | 15.1 PSI |
Width | 9.9 in. |
Characteristics and Features
Automatic | No |
Configuration | Submersible Pump |
Impeller Material | Cast Iron |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 35 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Automatic | No |
Configuration | Submersible Pump |
Impeller Material | Cast Iron |
Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Shutoff Head in Feet | 35 |
Submersible | Yes |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 11 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 1 |
Maximum Fluid Temperature | 140 °F |
Voltage | 200, 208 |
Wattage | 2000 |
Electrical and Operational Information
Amperage | 11 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 1 |
Maximum Fluid Temperature | 140 °F |
Voltage | 200, 208 |
Wattage | 2000 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
