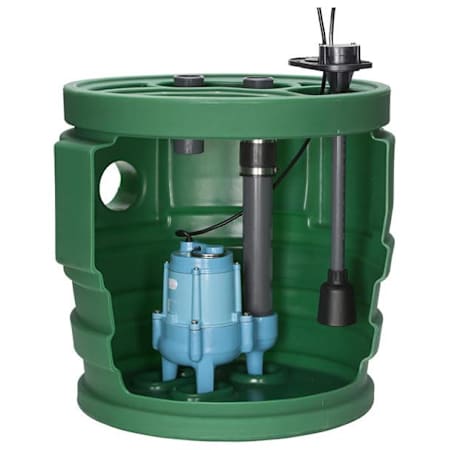

Little Giant 9JP2V2D - Pit Plus Jr. 4/10 HP Premium Simplex Sewage System with ECM Switch (2" Vent, 2" Discharge)
Model: 509687|Item: bci2832483
from thePit+Plus Collection
$761.50
3 In Stock
Options
2" Vent / No Alarm
$1,070.10
2" Vent / With Alarm
$1,089.28
2" Vent / ECM Swtch / No Alrm
$761.50
3" Vent / No Alarm
$754.14
2" Vent / ECM Swtch / No Alrm
Free Shipping!
Leaves the Warehouse Tomorrow, May 18th
-Details
Features:
- Pit+Plus Jr. Premium Simplex Systems: Most advanced and contractor-friendly sewage basin in the industry
- Separate Pump And Switch Access Cover
- Access the pump and/or switch independently
- No disruption to the plumbing connections
- Saves time, money, and mess
- ECM (External Control Module) Switch: Monitor liquid level for operation of a switch outside the basin to prevent failure
- Easy Installation w/ All Materials Included
- Molded inlet hub, torque stops, 360° molded handle,
- Integrated anti-flotation collar, stainless steel fasteners
- 4-Inch intake grommet
- 24" x 24" Basin w/ Functional and Aesthetic Finished Cover
- 2" discharge, 2" vent recessed location
- Independent recessed switch module and pump access cover
- Switch cord grips and locators for directional control
- Little Giant 9SN-CIM Cast Iron Sewage Pump: 4/10 HP - PSC motor with thermal overload protection
- Check Valve Sold Separately
Dimensions and Measurements
Cord Length | 20 ft. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 110 |
Flow Rate by Feet of Head | 110 gal / 5 ft, 72 gal / 10 ft, 32 gal / 15 ft, 0 gal / 20 ft |
Height | 26.54 in. |
Water Connection | 2" |
Width | 24 in. |
Dimensions and Measurements
Cord Length | 20 ft. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 110 |
Flow Rate by Feet of Head | 110 gal / 5 ft, 72 gal / 10 ft, 32 gal / 15 ft, 0 gal / 20 ft |
Height | 26.54 in. |
Water Connection | 2" |
Width | 24 in. |
Included Components
Inlet Grommet Included | Yes |
Included Components
Inlet Grommet Included | Yes |
Characteristics and Features
Base Material | Iron |
Basin Type | Rolled Top |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Material | Plastic |
Material Casing | Plastic |
Material Housing | Plastic |
Submersible | Yes |
Switch Type | Float |
Characteristics and Features
Base Material | Iron |
Basin Type | Rolled Top |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Material | Plastic |
Material Casing | Plastic |
Material Housing | Plastic |
Submersible | Yes |
Switch Type | Float |
Electrical and Operational Information
Amperage | 8.5 |
Horsepower | 0.4 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 8.5 |
Horsepower | 0.4 |
Voltage | 120 |
Warranty and Product Information
Commercial Warranty | 2 Year |
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Commercial Warranty | 2 Year |
Manufacturer Warranty | 2 Year |
