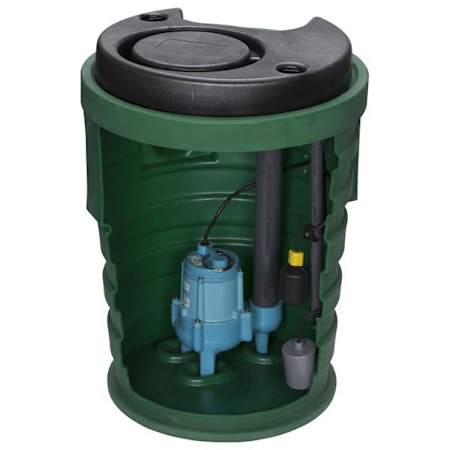

Little Giant 9SF2V2DA1 - Pit Plus Sr. 4/10 HP Premium Simplex Sewage System with Tether Float Switch and Indoor Alarm (2" Vent, 2" Discharge)
Model: 509662|Item: bci3798894
from thePit+plus Sr Collection
$889.20
2 In Stock
Options
4/10-HP, Alarm, Mech. Float
4/10-HP, No Alarm, Mech. Float
$693.98
4/10-HP, Alarm, Mech. Float
$889.20
4/10-HP, No Alarm, ECM Switch
$737.20
1/2-HP, No Alarm, Mech. Float
$873.56
1/2-HP, Alarm, Mech. Float
$1,063.69
1/2-HP, No Alarm, ECM Switch
$868.50
4/10-HP, Alarm, Mech. Float
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-Details
Features:
- Pit+Plus Sr. Premium Simplex Systems: Most advanced and contractor-friendly sewage basin in the industry
- Separate Pump And Switch Access Cover
- Access the pump and/or switch independently
- No disruption to the plumbing connections
- Saves time, money, and mess
- Easy Installation w/ All Materials Included
- Molded inlet hub, torque stops, 360° molded handle,
- Integrated anti-flotation collar, stainless steel fasteners
- 4-Inch intake grommet
- 24" x 30" Basin w/ Functional and Aesthetic Finished Cover
- 2" discharge, 2" vent recessed location
- Independent recessed switch module and pump access cover
- Switch cord grips and locators for directional control
- Little Giant 9SN-CIM Sewage Pump
- 4/10 HP - PSC motor with thermal overload protection
- Cast iron pump housing with protective epoxy coating
- High Water Alarm Included: Indoor rated enclosure
- Check Valve Sold Separately
Dimensions and Measurements
Cord Length | 20 ft. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 110 |
Flow Rate by Feet of Head | 110 gal / 5 ft, 70 gal / 10 ft, 30 gal / 15 ft |
Maximum Diameter Solids | 2 in. |
Dimensions and Measurements
Cord Length | 20 ft. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 110 |
Flow Rate by Feet of Head | 110 gal / 5 ft, 70 gal / 10 ft, 30 gal / 15 ft |
Maximum Diameter Solids | 2 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Shutoff Head in Feet | 20 |
Characteristics and Features
Automatic | Yes |
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Shutoff Head in Feet | 20 |
Electrical and Operational Information
Amperage | 8.5 |
Horsepower | 0.4 |
Voltage | 120 |
Wattage | 1045.00 |
Electrical and Operational Information
Amperage | 8.5 |
Horsepower | 0.4 |
Voltage | 120 |
Wattage | 1045.00 |
Warranty and Product Information
Commercial Warranty | 2 Year |
Manufacturer Warranty | 2 Year |
Warranty and Product Information
Commercial Warranty | 2 Year |
Manufacturer Warranty | 2 Year |
