Little Giant 80 GPM 115V Wastewater Collection & Removal System with Structural Foam Cover and 15' Cord
Model: 509081|Item: bci912400
$1,451.00
Special Order
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 6 to 10 weeks
-Details

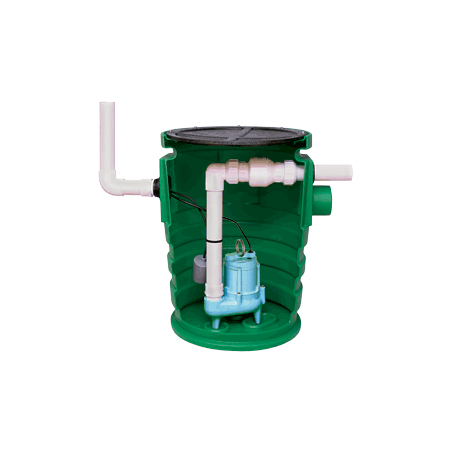

The WCR-9S wastewater system is designed for collection and removal of water run-off from low-lying problem areas. Available pre-packaged with structural foam cover. Discharge and electrical connections are made through the side of basin, allowing top of basin to be flush with ground level. No digging is required for servicing the system.
Product Features:- 4/10 Horse Power with overload protection
- New cooler running motor which extends the life of the pump
- Designed for continuous duty
- Covered by 12 month limited warranty
- Handles 2" solids
- Cover made from: Cast iron
- Housing made from: Cast iron
- Impeller Type: Vortex
- Impeller made from: Nylon
- Switch Type: Mechanical float
- Single phase operation
- 15' Cord included
- 4/10 Horse Power
- Voltage: 115V
- 13 Amp maximum operation
- 2" Discharge diameter
- Width: 22"
- Height: 30"
- Flow rates (GPH: gallons-per-hour):
- At 5 feet of head: 80
- At 10 feet of head: 50
- At 15 feet of head: 16
Dimensions and Measurements
Cord Length | 180 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 16 gal / 15 ft, 50 gal / 10 ft, 80 gal / 5 ft |
Height | 30 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 18 in. |
Minimum Head Height | 5 in. |
Product Weight | 67 lbs. |
Shut Off Height | 18 in. |
Water Connection | 2" |
Width | 22 in. |
Dimensions and Measurements
Cord Length | 180 in. |
Discharge Diameter | 2 in. |
Flow Rate by Feet of Head | 16 gal / 15 ft, 50 gal / 10 ft, 80 gal / 5 ft |
Height | 30 in. |
Maximum Diameter Solids | 2 in. |
Maximum Head Height | 18 in. |
Minimum Head Height | 5 in. |
Product Weight | 67 lbs. |
Shut Off Height | 18 in. |
Water Connection | 2" |
Width | 22 in. |
Characteristics and Features
Automatic | Yes |
Impeller Material | Nylon |
Material | Cast Iron |
Material Casing | Iron, Plastic |
Material Housing | Iron |
Shutoff Head in Feet | 18 |
Submersible | Yes |
Switch Type | Float |
Characteristics and Features
Automatic | Yes |
Impeller Material | Nylon |
Material | Cast Iron |
Material Casing | Iron, Plastic |
Material Housing | Iron |
Shutoff Head in Feet | 18 |
Submersible | Yes |
Switch Type | Float |
Electrical and Operational Information
Amperage | 13 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | .4 |
Maximum Fluid Temperature | 140 °F |
Voltage | 115 |
Wattage | 1020 |
Electrical and Operational Information
Amperage | 13 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | .4 |
Maximum Fluid Temperature | 140 °F |
Voltage | 115 |
Wattage | 1020 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Warranty and Product Information
Approved for Commercial Use | Yes |
