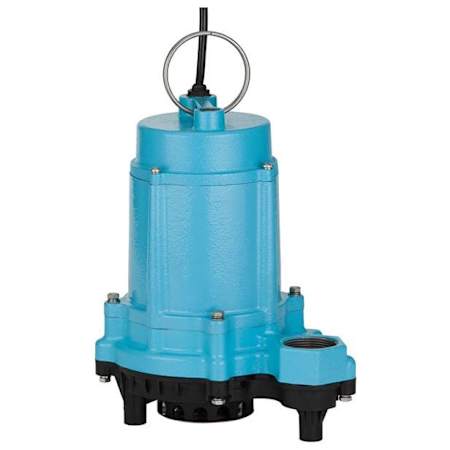

Little Giant 6EC-CIM - 1/3 HP Submersible Sump Pump with 20' cord (Non-Automatic)
Model: 506802|Item: bci3070824
from the6EC Collection
$264.00
201 In Stock
Options
Manual Valve & 20-Ft Cord
Manual Valve & 10-Ft Cord
$241.01
Manual Valve & 20-Ft Cord
$264.00
Piggback Valve
$276.45
Snap-Action Valve & 10-Ft Cord
$262.50
Snap-Action Valve & 20-Ft Cord
$269.01
Cast Iron Base & Piggyback Flt
$330.60
Manual Valve & 20-Ft Cord
Free Shipping!
Leaves the Warehouse in 3 to 5 business days
-Details
Features:
- Manual Submersible Sump Pump - Non-Automatic: Continuous duty rated for sump and light effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life
- 1/3 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Vortex Style Nylon Impeller: Non-clogging design passes up to 1/2" spherical solids
- No Sheet Metal Parts To Rust Or Corrode: Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces: Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings: Minimizes friction while providing smooth and quiet operation
- 20-Foot Power Cord
- 28' Max Shutoff Head
- 2-Year Limited Warranty
Dimensions and Measurements
Cord Length | 20 ft. |
Discharge Diameter | 1.25, 1.5 in. |
Flow Rate (GPM) | 53 |
Flow Rate by Feet of Head | 53 gal / 5 ft, 50 gal / 10 ft, 42 gal / 15 ft, 34 gal / 20 ft |
Height | 11.28 in. |
Length | 9.5 in. |
Maximum Head Height | 28 ft. |
Minimum Head Height | 5 ft. |
Product Weight | 27.5 lbs. |
Water Connection | 1-1/2" |
Water Pressure (Max) | 12.1 PSI |
Width | 8.79 in. |
Dimensions and Measurements
Cord Length | 20 ft. |
Discharge Diameter | 1.25, 1.5 in. |
Flow Rate (GPM) | 53 |
Flow Rate by Feet of Head | 53 gal / 5 ft, 50 gal / 10 ft, 42 gal / 15 ft, 34 gal / 20 ft |
Height | 11.28 in. |
Length | 9.5 in. |
Maximum Head Height | 28 ft. |
Minimum Head Height | 5 ft. |
Product Weight | 27.5 lbs. |
Water Connection | 1-1/2" |
Water Pressure (Max) | 12.1 PSI |
Width | 8.79 in. |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Switch Type | Manual |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Switch Type | Manual |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 5 |
Backup GPH @ 0 feet | 3180 GPH |
Backup GPH @ 10 feet | 3000 GPH |
Backup GPH @ 15 feet | 2520 GPH |
Backup GPH @ 20 feet | 2040 GPH |
Backup GPH @ 5 feet | 3180 GPH |
Electrical Phases | 1 |
Horsepower | 0.33 |
Maximum Fluid Temperature | 140 °F |
Voltage | 120 |
Wattage | 600 |
Electrical and Operational Information
Amperage | 5 |
Backup GPH @ 0 feet | 3180 GPH |
Backup GPH @ 10 feet | 3000 GPH |
Backup GPH @ 15 feet | 2520 GPH |
Backup GPH @ 20 feet | 2040 GPH |
Backup GPH @ 5 feet | 3180 GPH |
Electrical Phases | 1 |
Horsepower | 0.33 |
Maximum Fluid Temperature | 140 °F |
Voltage | 120 |
Wattage | 600 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Manufacturer Warranty | 2 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | CSA |
Manufacturer Warranty | 2 |
