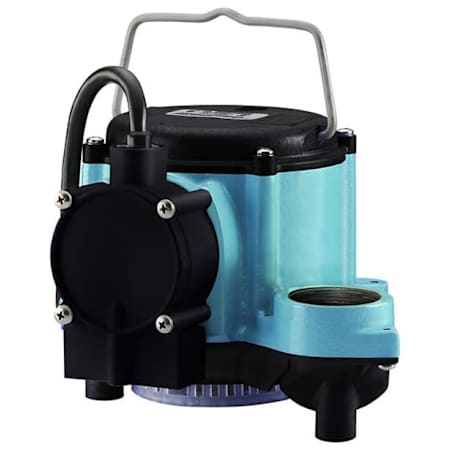

Little Giant 6-CIA - 1/3 HP Cast Iron Submersible Sump Pump with Diaphragm Switch (10' Cord)
Model: 506158|Item: bci2130517
from the6-Series Collection
$209.50
1272 In Stock
Options
None
None
$209.50
25-Ft. Cord
$263.78
Medium-Level Switch
$220.00
Leg Kit
$186.48
Legs & 25-Ft. Cord
$290.97
230V
$299.72
Piggyback Diaphragm
$269.97
None
Free Shipping!
Leaves the Warehouse Tomorrow, May 15th
-Details
Features:
- Contractor-Grade Submersible Sump Pump: Continuous duty rated for basement and crawlspace applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing: Minimizes rust and corrosion to extend overall pump life
- Integral Diaphragm Pressure Switch: Provides reliable automatic operation
- 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection: Oil-filled motor housing provides lower operating temperatures
- Vortex Style Nylon Impeller: Reduces clogging while providing consistent pumping
- Stainless Steel Fasteners: Protects against corrosion in harsh sump pits
- Upper and Lower Sintered-Sleeve Bearing: Minimizes friction while providing smooth and quiet operation
- Carbon/Ceramic Mechanical Seal: Assures maximum protection against pump failure
- 10' Power Cord: 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 10 ft. |
Depth | 9.5 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 46 |
Flow Rate by Feet of Head | 46 gal / 5 ft, 29 gal / 10 ft, 12.5 gal / 15 ft |
Height | 22 in. |
Length | 9.5 in. |
Maximum Head Height | 18 ft. |
Minimum Head Height | 5 ft. |
Product Weight | 30 lbs. |
Shut Off Height | 18 in. |
Shut Off Pressure | 7.8 |
Water Connection | 1-1/2" |
Water Pressure (Max) | 7.8 PSI |
Width | 20.5 in. |
Dimensions and Measurements
Cord Length | 10 ft. |
Depth | 9.5 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 46 |
Flow Rate by Feet of Head | 46 gal / 5 ft, 29 gal / 10 ft, 12.5 gal / 15 ft |
Height | 22 in. |
Length | 9.5 in. |
Maximum Head Height | 18 ft. |
Minimum Head Height | 5 ft. |
Product Weight | 30 lbs. |
Shut Off Height | 18 in. |
Shut Off Pressure | 7.8 |
Water Connection | 1-1/2" |
Water Pressure (Max) | 7.8 PSI |
Width | 20.5 in. |
Characteristics and Features
Automatic | Yes |
Base Material | Plastic |
Configuration | Submersible Pump |
Handles Solids | No |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Material Casing | Iron, Polycarbonate |
Material Housing | Iron |
Material Shaft | Carbon |
Pump Material | Cast Iron |
Shutoff Head in Feet | 18 |
Submersible | Yes |
Switch Type | Diaphragm |
Water Connection Type | NPT |
Characteristics and Features
Automatic | Yes |
Base Material | Plastic |
Configuration | Submersible Pump |
Handles Solids | No |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | No |
Material | Cast Iron |
Material Casing | Iron, Polycarbonate |
Material Housing | Iron |
Material Shaft | Carbon |
Pump Material | Cast Iron |
Shutoff Head in Feet | 18 |
Submersible | Yes |
Switch Type | Diaphragm |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9 |
Backup GPH @ 0 feet | 2760 GPH |
Backup GPH @ 10 feet | 1740 GPH |
Backup GPH @ 15 feet | 750 GPH |
Backup GPH @ 20 feet | 0 GPH |
Backup GPH @ 5 feet | 2760 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33 |
Maximum Fluid Temperature | 140 °F |
Voltage | 120 |
Wattage | 720 |
Electrical and Operational Information
Amperage | 9 |
Backup GPH @ 0 feet | 2760 GPH |
Backup GPH @ 10 feet | 1740 GPH |
Backup GPH @ 15 feet | 750 GPH |
Backup GPH @ 20 feet | 0 GPH |
Backup GPH @ 5 feet | 2760 GPH |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33 |
Maximum Fluid Temperature | 140 °F |
Voltage | 120 |
Wattage | 720 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Certifications | UL, CSA |
Manufacturer Warranty | 3 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Certifications | UL, CSA |
Manufacturer Warranty | 3 |
