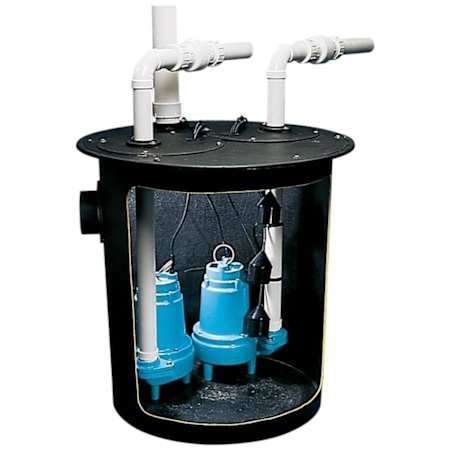

Little Giant 9S-DPLX - 4/10 HP Cast Iron Pre-Packaged Duplex Sewage Pump (9SC-CIM) System with PB Tether Floats (18" x 30" - Structural Foam Basin)
Model: 14940697|Item: bci3125534
from theDuplex Collection
$5,411.61
Special Order
Horsepower
4/10-HP
$5,411.61
1/2-HP
$3,709.00
4/10-HP
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-Details
Features:
- Little Giant 9S-DPLX - 4/10 HP Pre-Packaged Duplex Sewage Pump System
- Continuous duty rated automatic submersible sewage pumps - 6200 GPH
- Designed for the tough demanding tasks for wastewater removal
- Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge: Minimizes rust and corrosion to extend overall pump life
- 4/10 HP PSC Motor w/ Thermal Overload Protection: Energy saving design w/ low amp draw (8-Amps full load)
- Control Panel w/ Tethered Float Switches: Pumps work in alternate pumping process for increased protection
- Epoxy Coated Cast Iron Volute w/ Vortex Style Nylon Impeller
- Non-clogging design passes up to 2" spherical solids
- 20' Max Shutoff Head
- Additional Features
- Nitrile mechanical shaft seal w/ carbon and ceramic faces
- Upper sintered sleeve bearings and lower ball bearings
- 20' SJTW Power Cord
- System Includes:
- 24" x 36" Structural foam basin w/ cast iron inlet hub
- Steel cover with 2" vent and 2" discharge
- (2) 9SC-CIM Sewage pump (509413) 115V 4/10HP
- Control panel w/ (3) Tethered float switches
- 2" Check valves
- 3-Year Limited Warranty
Dimensions and Measurements
Capacity (Gallons) | 72 |
Cord Length | 20 ft. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 110 |
Flow Rate by Feet of Head | 75 gal / 10 ft, 30 gal / 15 ft, 110 gal / 5 ft |
Inlet Diameter | 4 in. |
Water Connection | 2" |
Dimensions and Measurements
Capacity (Gallons) | 72 |
Cord Length | 20 ft. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 110 |
Flow Rate by Feet of Head | 75 gal / 10 ft, 30 gal / 15 ft, 110 gal / 5 ft |
Inlet Diameter | 4 in. |
Water Connection | 2" |
Included Components
Installation Hardware Included | Yes |
Included Components
Installation Hardware Included | Yes |
Characteristics and Features
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | Yes |
Material | Cast Iron, Steel, Thermoplastic, Foam, PVC |
Mechanical Seal Material | Ceramic Carbon |
Pump Material | Cast Iron |
Solid Handling | 2 Inch |
Switch Type | Manual, Automatic, On / Off |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Iron |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Nylon |
Manual Override | Yes |
Material | Cast Iron, Steel, Thermoplastic, Foam, PVC |
Mechanical Seal Material | Ceramic Carbon |
Pump Material | Cast Iron |
Solid Handling | 2 Inch |
Switch Type | Manual, Automatic, On / Off |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 8 |
Electrical Phases | 1 |
Horsepower | 0.4 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 8 |
Electrical Phases | 1 |
Horsepower | 0.4 |
Voltage | 120 |
Warranty and Product Information
Certifications | UL, CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Certifications | UL, CSA |
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
