Liberty Pumps
Liberty Pumps 1/3 Primary (257) and StormCell (10A) Battery Backup Sump Pump System N/A

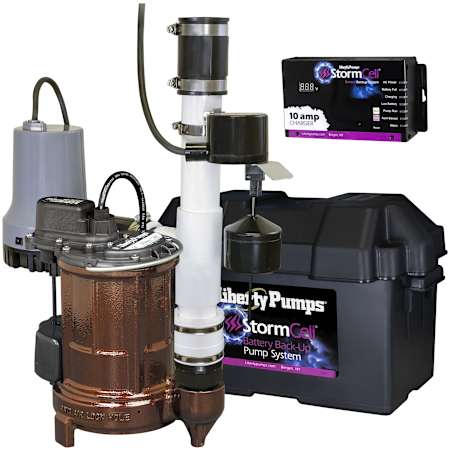

Liberty Pumps 1/3 Primary (257) and StormCell (10A) Battery Backup Sump Pump System

Model: PC257-441-10A
|
Item: bci5171392

$765.75
19 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, May 15th
-
Return & Shipping Details

Details

Features:

  • Liberty Pumps PC 441-10A-Series Combo Pump System: Pre-assembled primary pump and battery backup system

  • Compact Profile Design - Drop-In-The-Pit Ready: Will fit in 15" (W) x 18" (D) minimum sump basins

  • Fully Automatic Operation - Provides Uninterrupted Pumping: Keeps the water moving during an outage or primary pump failure

  • 1/3 HP Cast Iron Primary Pump w/ Vertical Float Switch (257)
    • Rugged, energy efficient and thermally protected 1/3 HP motor
    • UNI-BODY casting w/ epoxy coated power coat finish
    • Magnetically operated vertical float switch

  • Energy-Efficient 12V DC Submersible Pump - Up to 1260 GPH @ 10'
    • Corrosion-resistant, thermoplastic construction
    • Integral check valve for reliable operation

  • Basic Controller w/ 10-Amp Charger
    • Auto switches to 5A maintenance mode when battery is charged
    • Monitors maintenance charge cycle to identify/alert aging batteries
    • Battery voltage displayed on charger

  • 7-LED Alerts For Critical System Information: Easily see what's going on with your system

  • Audible In-Use Alarm: Be alerted when system operates

  • Compact, Vertical Float Switch: Fully-assembled design for easier set-up

  • Easily Connects to 1-1/2" Discharge Line: Includes primary and backup check valves

  • Battery Box: Non-corrosive polyethylene design for added safety

  • Meets US DOE and California CEC Energy Efficiency Standards (Back-up System)

  • Requires 12V Group 27 or 31 AGM, Gel, or Wet Cell Battery (Not Included)

  • 3-Year Limited Warranty

  • For indoor use only

Additional Liberty Pumps Links

Manufacturer Resources

Install SheetSpecification Sheet

Dimensions and Measurements

Cord Length
10 ft.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
44
Product Weight
30 lbs.

Dimensions and Measurements

Cord Length
10 ft.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
44
Product Weight
30 lbs.

Included Components

Battery Included
No

Included Components

Battery Included
No

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Composite
Submersible
Yes

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Composite
Submersible
Yes

Electrical and Operational Information

Amperage
5.2
Backup GPH @ 0 feet
2640 GPH
Backup GPH @ 10 feet
1800 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 20 feet
240 GPH
Backup GPH @ 5 feet
2220 GPH
Battery Backup
Yes
Horsepower
0.33
Starting Amps
8 Amps
Voltage
12

Electrical and Operational Information

Amperage
5.2
Backup GPH @ 0 feet
2640 GPH
Backup GPH @ 10 feet
1800 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 20 feet
240 GPH
Backup GPH @ 5 feet
2220 GPH
Battery Backup
Yes
Horsepower
0.33
Starting Amps
8 Amps
Voltage
12

Warranty and Product Information

Manufacturer Warranty
3

Warranty and Product Information

Manufacturer Warranty
3
