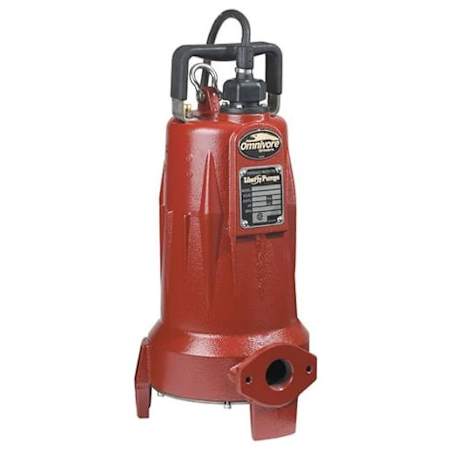

Liberty Pumps 2 HP Omnivore Grinder Pump (440-480V 3-Phase) with 25' Cord
Model: LSG204M|Item: bci3813148
from theN/A Collection
Details
Features:
- Submersible Cast Iron Omnivore Grinder Pump (Up to 100' Lift)
- For residential/commercial systems w/ high solid content
- Requires control box or float switch for automatic operation
- Uni-Body Epoxy Powder Coated Cast Iron Construction: Designed to provide years of reliable performance
- Heavy Duty 2 HP (440-480V 3-Phase) Motor: Hermetically sealed, permanently lubricated design
- V-Slice Cutter Technology (440 Stainless Steel): Provides improved shredding performance over radial cutters
- Back Vanes On Impeller and Spiraled Bottom Plate: Clog-free volute design provides superior solids clearing
- Stainless Steel Rotor Shaft w/ Dual Seals: Carbon ceramic and Viton double-lip lower seal for extended life
- Non-Corrosive Stainless Steel Impeller, Fasteners and Clasp
- Increases the lifespan of the pump even in the harshest systems
- Minimizes lifting chain problems over the lifespan of the pump
- Quick-Disconnect 25' Power Cord - Bare Lead: Makes this pump easy to install/remove from basin
- 3-Year Limited Warranty
- (G90) Flange May Be Required For Installation (Not Included)
Dimensions and Measurements
Cord Length | 25 ft. |
Discharge Diameter | 1.25 in. |
Flow Rate (GPM) | 50 |
Height | 19.66 in. |
Width | 12.79 in. |
Dimensions and Measurements
Cord Length | 25 ft. |
Discharge Diameter | 1.25 in. |
Flow Rate (GPM) | 50 |
Height | 19.66 in. |
Width | 12.79 in. |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Housing Material | Cast Iron |
Impeller Material | Stainless Steel |
Manual Override | Yes |
Characteristics and Features
Automatic | No |
Base Material | Iron |
Housing Material | Cast Iron |
Impeller Material | Stainless Steel |
Manual Override | Yes |
Electrical and Operational Information
Amperage | 5.3 |
Horsepower | 2 |
Voltage | 460 |
Electrical and Operational Information
Amperage | 5.3 |
Horsepower | 2 |
Voltage | 460 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 3 Year |
