Liberty Pumps
Liberty Pumps 1/3 HP Aluminum Submersible Sump Pump (Non-Automatic) N/A
Liberty Pumps 1/3 HP Aluminum Submersible Sump Pump (Non-Automatic) N/A
Alternate Image

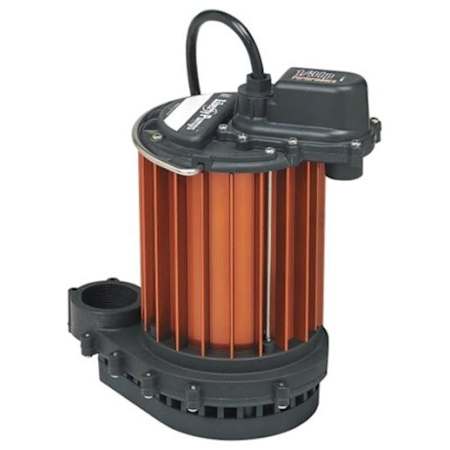

Liberty Pumps 1/3 HP Aluminum Submersible Sump Pump (Non-Automatic)

Model: 230
|
Item: bci5171570

$199.50
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details



Features:

  • ***NON-AUTOMATIC - Requires Float Switch***

  • Submersible Aluminum/Polypropylene Sump Pump: A superior value for average water removal

  • Deep Finned Powder Coated Aluminum Motor Housing: Provides 225% more cooling capacity than cast iron housings

  • Rugged and Thermally Protected 1/3 HP Motor: Hermetically sealed, permanently lubricated design

  • High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling

  • High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seals

  • Removable Pump Base: Allows for suction down to 1/8"

  • Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest sump pits

  • Stainless Steel Rotor Shaft: Permanently lubricated upper/lower bearings for extended life

  • 3-Year Limited Warranty


  •



Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5, 2 in.
Flow Rate by Feet of Head
1800 gal / 10 ft, 240 gal / 20 ft, 2220 gal / 5 ft, 2640 gal / 0 ft, 1140 gal / 15 ft
Height
19.3 in.
Length
18 in.
Product Weight
87 lbs.
Width
12.75 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5, 2 in.
Flow Rate by Feet of Head
1800 gal / 10 ft, 240 gal / 20 ft, 2220 gal / 5 ft, 2640 gal / 0 ft, 1140 gal / 15 ft
Height
19.3 in.
Length
18 in.
Product Weight
87 lbs.
Width
12.75 in.

Characteristics and Features

Automatic
No
Base Material
Plastic
Float Type
No Switch
Housing Material
Aluminum
Impeller Material
Composite
Shutoff Head in Feet
37
Solid Handling
3/8 Inch
Submersible
Yes

Characteristics and Features

Automatic
No
Base Material
Plastic
Float Type
No Switch
Housing Material
Aluminum
Impeller Material
Composite
Shutoff Head in Feet
37
Solid Handling
3/8 Inch
Submersible
Yes

Electrical and Operational Information

Amperage
17.1
Backup GPH @ 0 feet
8700 GPH
Backup GPH @ 10 feet
8400 GPH
Backup GPH @ 20 feet
7830 GPH
Backup GPH @ 5 feet
8700 GPH
Horsepower
0.33
Starting Amps
8 Amps
Voltage
120

Electrical and Operational Information

Amperage
17.1
Backup GPH @ 0 feet
8700 GPH
Backup GPH @ 10 feet
8400 GPH
Backup GPH @ 20 feet
7830 GPH
Backup GPH @ 5 feet
8700 GPH
Horsepower
0.33
Starting Amps
8 Amps
Voltage
120

Warranty and Product Information

Manufacturer Warranty
1

Warranty and Product Information

Manufacturer Warranty
1
