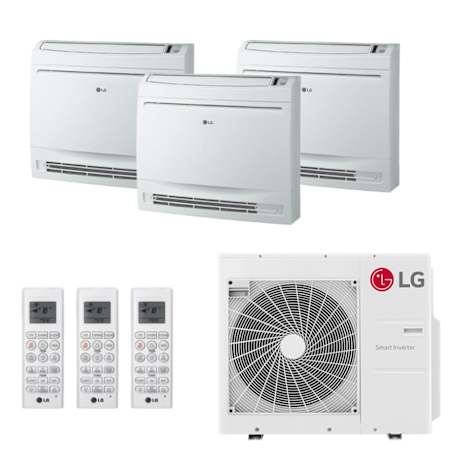

LG 32.8K BTU Cooling / 36K BTU Heating 21.5 SEER2 Three Zone Floor Console Mini Split System with (1) 12K and (2) 15K BTU Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This low wall console ductless heat pump system pairs a powerful KUMXB361A outdoor condenser with three low wall console indoor units. An easy installation process and low sound levels mean that this system provides temperature control that doesn't disrupt your home. The well-rounded indoor units feature several convenient operation modes and each includes a wireless remote controller, making it easy for you to enjoy zoned comfort.

Product Information:

• Enhanced Connectivity: LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.


• Inverter Technology: LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.


• Quiet Design: Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.


• Gold Fin Protection: To ensure the reliability and longevity of the KUMXB361A's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.


• Jet Temperature Control: Quickly get your zone comfortable with the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.


• Automated Operation: Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.


• Sleep Mode: With the Sleep Mode and Timer functions, you can set this indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.


• Improved Air Quality: All of LG's low wall console mini split indoor units keep your air clean with a washable anti-fungal filter.


• Hot-Start: When the Hot-Start function is enabled, the indoor unit's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.


• Recommended line set sizes for indoor unit connectivity:
  • KNUQB121A: 1/4" x 3/8" Line Set
  • KNMQB151A: 1/4" x 1/2" Line Set (Qty 2)



Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • SEER2: 21.5
  • HSPF2: 9.5
• Manufacturer Warranty: 5 Year Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

KUMXB361A

• Cooling BTU Capacity: 32,800
• Heating BTU Capacity: 36,000
• Zone Capacity: 4
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Liquid Line Connection Size: 1/4"
• Gas Line Connection Size: 3/8"
• Depth: 13"
• Height: 32-7/8"
• Width: 37-3/8"
• Recommended Breaker Size: 25 A
• Amperage: 19 A
• Voltage: 208, 230V

KNUQB121A

• Zone Cooling BTU: 12,000
• Zone Heating BTU: 13,650
• Sound Level: 27 to 39 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 8-1/4"
• Height: 23-5/8"
• Width: 27-9/16"
• Amperage: 0.7 A
• Voltage: 208, 230V

KNMQB151A (x2)

• Zone Cooling BTU: 15,000
• Zone Heating BTU: 17,070
• Sound Level: 35 to 44 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 1/2" Inch
• Depth: 8-1/4"
• Height: 23-5/8"
• Width: 27-9/16"
• Amperage: 0.7 A
• Voltage: 208, 230V
