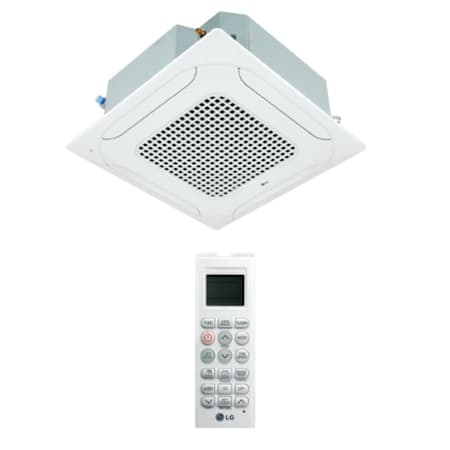

LG 7,000 BTU Cooling / 8,100 BTU Heating Mini Split Ceiling Cassette Indoor Unit with Automated Operation and Jet Cool

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

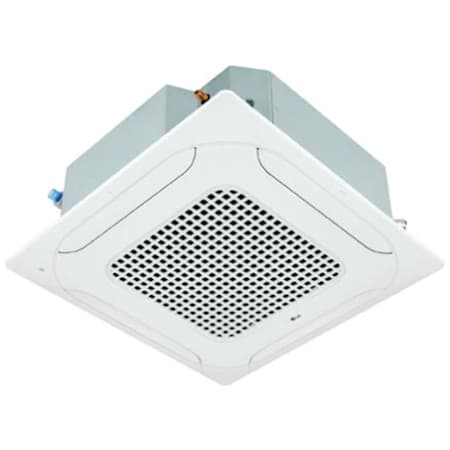

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. Part of the Four-Way Ceiling Cassette lineup of mini split indoor units, the KNMDB071A combines powerful multi-directional air flow with a low-profile design, allowing you to heat and cool large rooms discreetly. Thanks to the recessed installation design, a grille less than 1" thick is the only visible part of an installed KNMDB071A.

Product Information:

• Enhanced Connectivity: LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.


• Air Flow Options: The KNMDB071A offers two automated air flow options: Swing Mode and Swirl Wind mode. Any of these modes can be activated to provide optimal circulation specific to your home.


• Quiet Design: The KNMDB071A can operate at volumes as low as 24 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.


• Jet Cool: This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit will temporarily adjust the set point and fan speed for 30 minutes to quickly cool your zone.


• Automated Operation: Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.


• Sleep Mode: With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.


• Condensate Protection: Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the KNMDB071A through reliable, effective condensate removal.


• Dehumidify: LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.


• Improved Air Quality: The KNMDB071A features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.


• Hot-Start: When the hot-start function is enabled, the KNMDB071A's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.

Specifications:

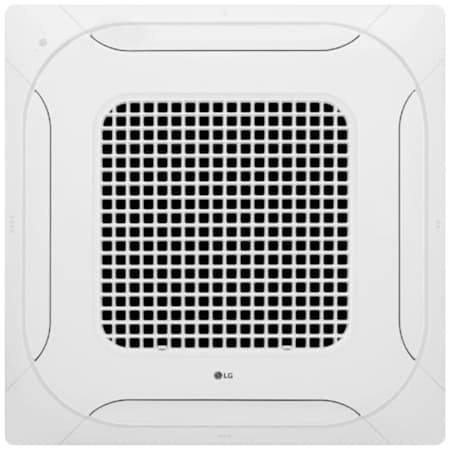

PT-QAGW0

• Product Category: Mini Split Air Conditioner Accessory
• Type: Grilles
• Width: 24-3/8"
• Length: 24-3/8
• Depth: 1-3/8"
• Product Weight: 6.3 lbs.

KNMDB071A-NG

• Zone Cooling BTU: 7,000
• Zone Heating BTU: 8,100
• Sound Level: 24 to 31 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 22-7/16"
• Height: 8-1/8"
• Width: 22-7/16"
• Amperage: 0.25 A
• Voltage: 208, 230V

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
