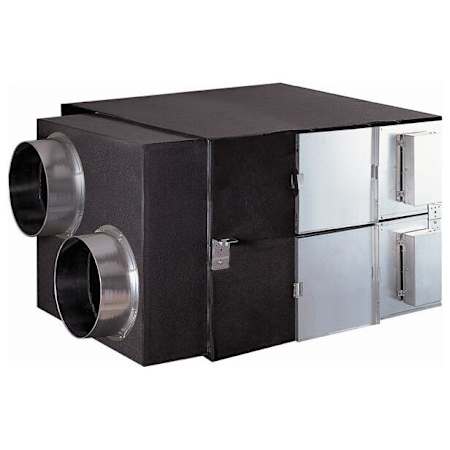

LG 1,180 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 14" Duct
Model: ARVU123ZFA2|Item: bci5187865
Details
The LG Energy Recovery Ventilator (ERV) is a 1,180 CFM ducted fan, designed to make your heating and cooling systems more efficient by recovering heat from exhaust air. Perfect for hotels, restaurants, schools, and office buildings, the LG ERV improves indoor air quality by bringing fresh outside air indoors. The LG ERV features an electronic control board, three speed brushless motor and washable filters.
Product Information:
- Energy Saving: Indoor air passes through the heat exchanger to pre-warm or pre-cool the incoming outside air, saving you money and energy by reducing the load your HVAC system needs to handle.
- Multiple Modes: The LG ERV can be operated independently in heat exchange mode or bypass mode. Heat exchange mode brings indoor and outdoor air across the heat exchanger, while bypass mode draws in untampered outdoor air.
- Simple Maintenance: With washable filters that are easy to access, cleaning the heat exchanger is a breeze.
Manufacturer Resources
Installation SheetEngineering ManualOwners ManualProduct LiteratureSpecification SheetDimensions and Measurements
CFM | 1177 |
CFM (High) | 1177 |
Depth | 41.813 in. |
Height | 29.063 in. |
Product Weight | 331 lbs. |
Width | 44.875 in. |
Dimensions and Measurements
CFM | 1177 |
CFM (High) | 1177 |
Depth | 41.813 in. |
Height | 29.063 in. |
Product Weight | 331 lbs. |
Width | 44.875 in. |
Included Components
Ductless | No |
Included Components
Ductless | No |
Characteristics and Features
Air Filter Type | Washable Air Filters |
Duct Discharge | Horizontal |
Fresh Air | Yes |
Humidity Sensing | Yes |
Installation Type | Ceiling Mounted, Wall Mounted |
Characteristics and Features
Air Filter Type | Washable Air Filters |
Duct Discharge | Horizontal |
Fresh Air | Yes |
Humidity Sensing | Yes |
Installation Type | Ceiling Mounted, Wall Mounted |
Electrical and Operational Information
Amperage | 6.82 |
Energy Recovery | Yes |
Heat Recovery | Yes |
Power Source | Hardwired |
Speeds | 3 |
Voltage | 208, 230 |
Wattage | 930 |
Electrical and Operational Information
Amperage | 6.82 |
Energy Recovery | Yes |
Heat Recovery | Yes |
Power Source | Hardwired |
Speeds | 3 |
Voltage | 208, 230 |
Wattage | 930 |
Warranty and Product Information
Certifications | AHRI, ETL |
Collection | ARV |
Fire Rated | No |
Manufacturer Warranty | 1 Year, 5 Year |
Warranty and Product Information
Certifications | AHRI, ETL |
Collection | ARV |
Fire Rated | No |
Manufacturer Warranty | 1 Year, 5 Year |
