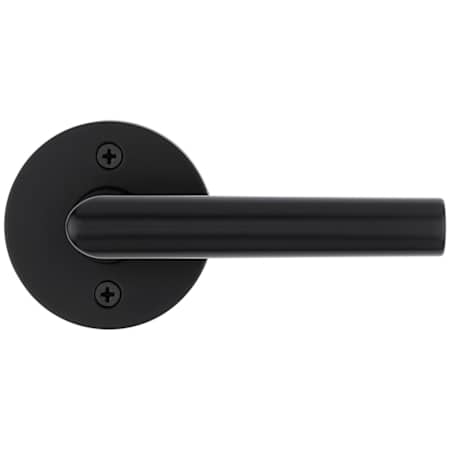

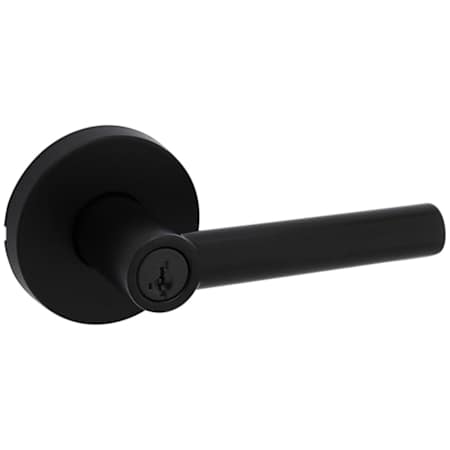

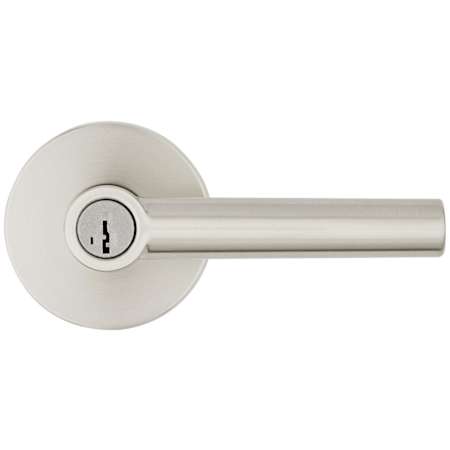

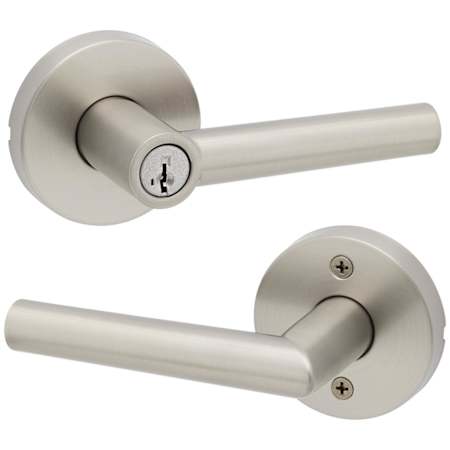

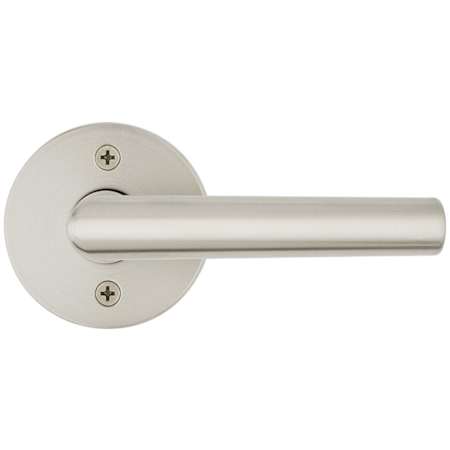

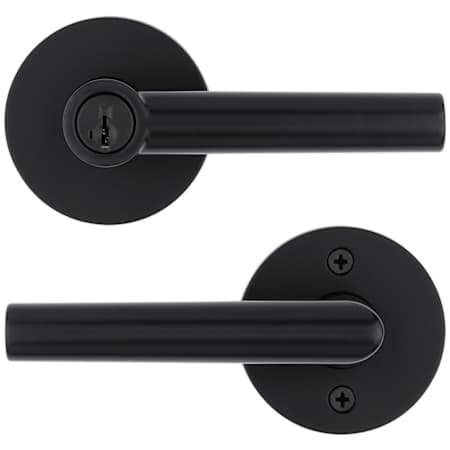

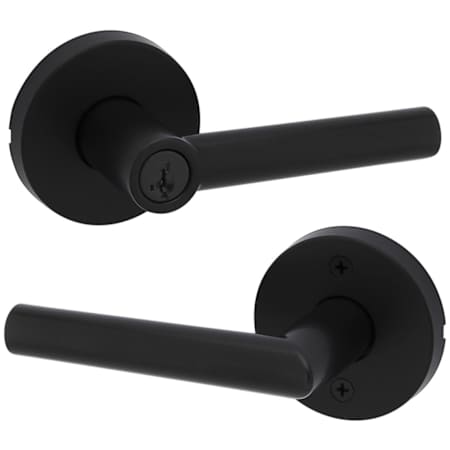

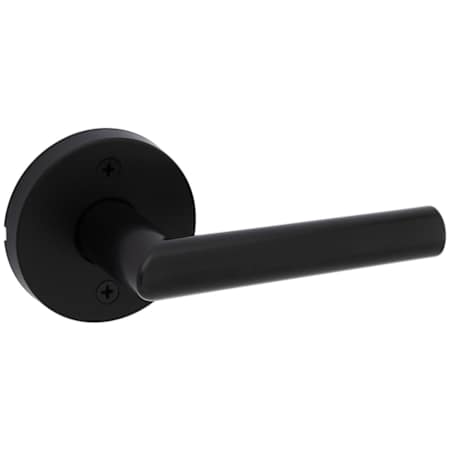

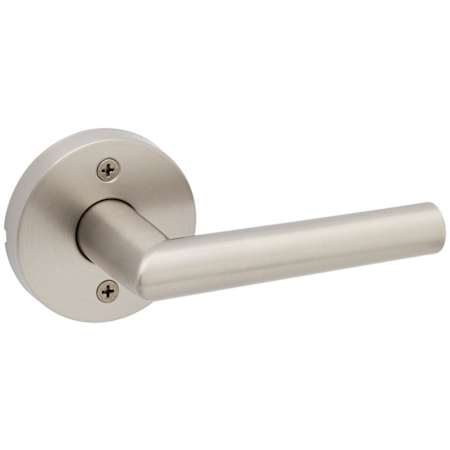

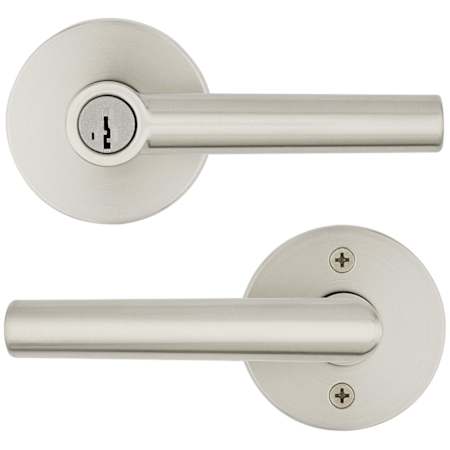

Kwikset Milan Single Cylinder Storeroom Door Lever Set with Round Rose
Model: 750MILRDT-514S.FD|Item: bci5038840
from theMilan Collection
$85.57
Finish: Matte Black -

5 In Stock


Finish: Matte Black -
5 In Stock

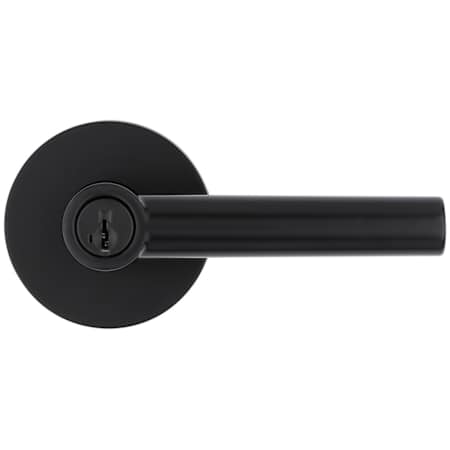

Matte Black
Details
Storeroom: Storeroom door hardware feature an outside handle that is always locked while the inside handle is always unlocked and free turning. Entry from exterior is only possible via key.
Features:
- Tested to exceed ANSI/BHMA AAA security requirements
- Constructed of high quality materials for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Kwikset's limited lifetime manufacturer warranty
- UL rated for 20 minutes in 15, 26, 26D & 514 finishes
- Outside unlocked only while key is turned, inside always free
- Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Handle Length: 4-11/16"
- Handle Projection: 2-1/2"
- Trim Width: 2-11/16"
- Trim Height: 2-11/16"
- Product Weight: 1.83 lbs.
- Latch Faceplate: Drive-In, Round Corner, or Square Corner
- Cylinder: SmartKey 5 Pin KW1
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Length | 4.6875 in. |
Handle Projection | 2.5 in. |
Product Weight | 1.83 lbs. |
Trim Height | 2.6875 in. |
Trim Width | 2.6875 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Length | 4.6875 in. |
Handle Projection | 2.5 in. |
Product Weight | 1.83 lbs. |
Trim Height | 2.6875 in. |
Trim Width | 2.6875 in. |
Included Components
28 Degree Latch | No |
Cylinder Included | Yes |
Interchangeable Core | No |
Included Components
28 Degree Latch | No |
Cylinder Included | Yes |
Interchangeable Core | No |
Characteristics and Features
Concealed Screws | No |
Cylinder | SmartKey 5 Pin |
Cylinder Type | Single Cylinder |
Function | Storeroom |
Handing | Left, Reversible, Right |
Handle Design | Milan |
Handle Material | Metal |
Handle Style | Lever |
Interconnected | No |
Keyway | KW1 |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Lever Shape | Round, Straight |
Material | Zinc |
Panic Proof | No |
Rosette Shape | Round |
Theme | Contemporary |
Characteristics and Features
Concealed Screws | No |
Cylinder | SmartKey 5 Pin |
Cylinder Type | Single Cylinder |
Function | Storeroom |
Handing | Left, Reversible, Right |
Handle Design | Milan |
Handle Material | Metal |
Handle Style | Lever |
Interconnected | No |
Keyway | KW1 |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Lever Shape | Round, Straight |
Material | Zinc |
Panic Proof | No |
Rosette Shape | Round |
Theme | Contemporary |
Manufacturer Technology
SmartKey | Yes |
Manufacturer Technology
SmartKey | Yes |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
BHMA Certification | AAA |
Certifications | BHMA, UL |
Collection | Milan |
Country Of Origin | Taiwan |
Fire Rated | Yes |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
BHMA Certification | AAA |
Certifications | BHMA, UL |
Collection | Milan |
Country Of Origin | Taiwan |
Fire Rated | Yes |
Manufacturer Warranty | Limited Lifetime |
