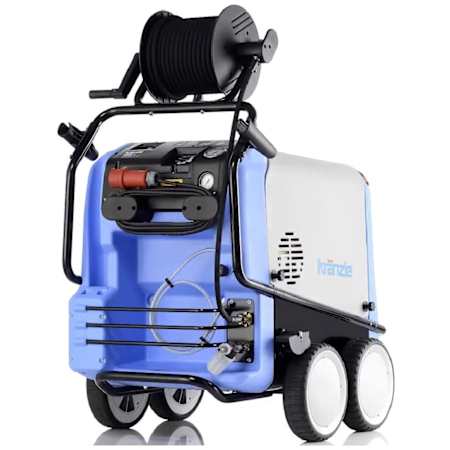

Kranzle 2400 PSI 5.5 GPM Electric Powered (440 Volt 3-Phase) Hot Water Pressure Washer
Model: 9800444|Item: bci5130007
Details
Product Information:
- Heavy Duty Industrial Steel Frame Unit: Great for municipalities, buildings, plant cleaning, etc.
- 220 V, 15 Amp TEFC 3 Phase Electric Motor For 440V 3 Phase Hookup
- 20 feet of power cord; you supply the plug that meets your needs
- Can be used indoors or outdoors
- High-Quality Kranzle AQ Industrial Grade Pump
- Kranzle adjustable unloader with pressure gauge
- Multi-hour bypass and run-dry capability prolongs pump life
- Solid brass head, ceramic-coated stainless steel plungers & self-priming
- Downdraft Fuel Efficient 220 Volt Burner Uses Diesel Fuel
- Adjustable digital temperature control panel
- 2 different operation modes and service mode
- Schedule 80 heating coil; flame safety monitor
- Total Stop System
- Automatically shuts on/off when trigger is intiated
- Power switch needs to be manually switched off after use
- Steele Frame with Removable Covers
- Convenient and easy service for access
- Parking brake provides secure stationary position
- Built-in accessory storage for high pressure gun and lances
- Professional-Grade Spray Gun & Lance
- Fixed 25-degree meg fan spray nozzle
- 65' wire braid reinforced hose on built-in hose reel
- Detergent suction intake for direct dispensing of cleaning agent
- Quick Change System
- Fast and easy changing of lance and accessories
- Twist stop screw connection reduces kinking of high pressure hose
- Steam Capable - Additional Accessories Required
Specifications:
- Grade: Commercial
- Water Temperature: Hot
- Flow Rate: 5.5 GPM
- Maximum Water Pressure: 2400 PSI
- Frame Type: 4-Wheel Cart
- CARB Approved
- Warranty: 1 Year Commercial, 1 Year Commercial Motor, 1 Year Commercial Pump, 1 Year Consumer, 1 Year Consumer Motor, and 1 Year Consumer Pump
Dimensions:
- Height: 47"
- Width: 32"
- Length: 41"
- Product Weight: 484 lbs
- Hose Length: 65"
- Hose Diameter: 5/16"
- Cord Length: 27"
Engine and Motor Specifications:
- Horsepower: 7 HP
- Motor: AC Induction
- Voltage: 440 Volts
- Amperage: 15 Amps
- Electrical Phases: 3-Phase
- Fuel Type: Electric
- Burner Fuel Type: Diesel
Dimensions and Measurements
Cord Length | 27 in. |
Flow Rate (GPM) | 5.5 |
Height | 47 in. |
Hose Diameter | 0.3125 in. |
Hose Length (Feet) | 65 ft. |
Length | 41 in. |
Product Weight | 484 lbs. |
Water Pressure (Max) | 2400 PSI |
Width | 32 in. |
Dimensions and Measurements
Cord Length | 27 in. |
Flow Rate (GPM) | 5.5 |
Height | 47 in. |
Hose Diameter | 0.3125 in. |
Hose Length (Feet) | 65 ft. |
Length | 41 in. |
Product Weight | 484 lbs. |
Water Pressure (Max) | 2400 PSI |
Width | 32 in. |
Included Components
Temperature Control | Yes |
Included Components
Temperature Control | Yes |
Characteristics and Features
Burner Fuel Type | Diesel |
Chemical Injection Type | Siphon Tube |
Frame Type | 4-Wheel Cart |
Hose Connection Type | M22 |
Hose Material | Wire Reinforced |
Hose Storage Type | Hose Reel |
Motor | AC Induction |
Spray Gun Connection | M22 |
Wand Type | Single Wand |
Characteristics and Features
Burner Fuel Type | Diesel |
Chemical Injection Type | Siphon Tube |
Frame Type | 4-Wheel Cart |
Hose Connection Type | M22 |
Hose Material | Wire Reinforced |
Hose Storage Type | Hose Reel |
Motor | AC Induction |
Spray Gun Connection | M22 |
Wand Type | Single Wand |
Electrical and Operational Information
Amperage | 15 |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7 |
Voltage | 440 |
Water Temperature | Hot |
Electrical and Operational Information
Amperage | 15 |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7 |
Voltage | 440 |
Water Temperature | Hot |
Warranty and Product Information
CARB approved | Yes |
Manufacturer Warranty | 1 Year Commercial, 1 Year Commercial Motor, 1 Year Commercial Pump, 1 Year Consumer, 1 Year Consumer Motor, 1 Year Consumer Pump |
Warranty and Product Information
CARB approved | Yes |
Manufacturer Warranty | 1 Year Commercial, 1 Year Commercial Motor, 1 Year Commercial Pump, 1 Year Consumer, 1 Year Consumer Motor, 1 Year Consumer Pump |
