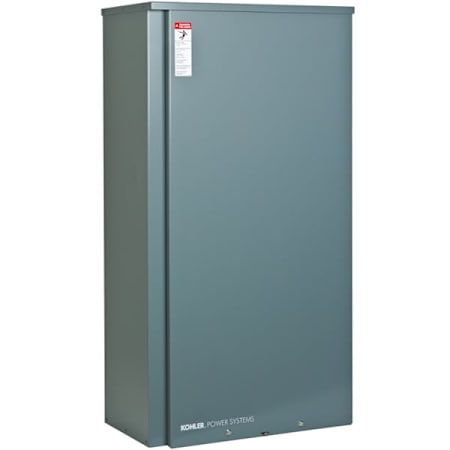

Kohler Power Systems RXT Series 400-Amp (120 / 240V) Single-Phase Outdoor Service Disconnect Automatic Transfer Switch
Model: RXT-JFNC-400ASE-QS3|Item: bci5177638
from theRXT Series Collection
Details
Features:
Kohler RXT Series 400-Amp Automatic Transfer Switch
- Only compatible with Kohler generators with RDC2/DC2 controllers
Service Entrance Rated
- Includes disconnect circuit breakers on both sources
Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
Standard Features
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
Combined Interface / Load Management Board
- Built-In Load Shed - Manage (2) HVAC loads
- Manage up to (4) Non-Essential loads***
Added Safety
- Contractor manually operable for maintenance purposes
Rated at 400-Amps at 240-Volts
***Requires PRM (Sold Separately)
5-Year Limited Warranty
Overview:
- Transfer Switch Style: Service Disconnect
- Product Weight: 101 lbs
- Width: 22"
- Height: 42-5/16"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 1
- Max Generator Input: 400A
- Max Utility Input: 400A
- Enclosure Material: NEMA 3R
Product Assurance:
- Certifications: UL
- Warranty: 5 Year
Dimensions and Measurements
Height | 42.3 in. |
Product Weight | 101 lbs. |
Width | 22 in. |
Dimensions and Measurements
Height | 42.3 in. |
Product Weight | 101 lbs. |
Width | 22 in. |
Characteristics and Features
ATS Features | Built-In Load Prioritizing, Built-In Load Shedding, Integrated Service Disconnect |
Enclosure Material | NEMA 3R |
Characteristics and Features
ATS Features | Built-In Load Prioritizing, Built-In Load Shedding, Integrated Service Disconnect |
Enclosure Material | NEMA 3R |
Electrical and Operational Information
Amperage | 400 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 400 |
Max Utility Input | 400 |
Transfer Switch Style | Service Disconnect |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 400 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 400 |
Max Utility Input | 400 |
Transfer Switch Style | Service Disconnect |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Manufacturer Warranty | 5 Year |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Manufacturer Warranty | 5 Year |
